Description

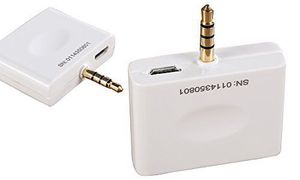

Portable mini HF reader & writer elf, it can be connected with IOS, Android and other intelligent system platform by 3.5mm headphone jack, elf has the characteristics : easily plug and use, light, small size, low power consumption, built-in rechargeable battery, convenient to take, suitable for anti-tamper terminal interrogator usage, navigation equipment and other excursions.
Parameter specifications:
1.Support HF label ISO 14443A protocols(Mifare1K,Ultralight,NTAG203)only support KeyA function.
2. Support IOS, Android intelligent platforms.
3. Communication interface: 3.5mm audio interface ( common headphone jack)
4. Read distance: 22mm(depend on tag size)
5. Work time: continuous 7 hours, query over 3 000 times.
6. Material: ABS+PC engineer plastics
7. Size: 39mm*30mm*11mm
8. Weight: :12g
9. Battery capacity: Lithium battery 130mA, can be recharged.
10.Charge method: USB 5V/0.5A,charge time is about 30 minutes.
11. Work environment temperature: -20℃~60℃
12. Indicator light states:
A. normal work: green light maintain light.
B. read tag ID: green light flashes.
C. Read tag block data: green light flashes.
D. Equipment malfunction: light does not shine.
E. Low power : green light has been slow blink ( low power alarm, please charge as soon as possible )
F. Ultra low power: green light always flash rapidly ( low power can't use, can't read card)
G. In charge: long red light.
H. Charge electricity finished: long green light.
Apple phone applicable models:
iPhone4 iPhone4S iPad2 iPhone5
Parameter specifications:
1.Support HF label ISO 14443A protocols(Mifare1K,Ultralight,NTAG203)only support KeyA function.
2. Support IOS, Android intelligent platforms.
3. Communication interface: 3.5mm audio interface ( common headphone jack)
4. Read distance: 22mm(depend on tag size)
5. Work time: continuous 7 hours, query over 3 000 times.
6. Material: ABS+PC engineer plastics
7. Size: 39mm*30mm*11mm
8. Weight: :12g
9. Battery capacity: Lithium battery 130mA, can be recharged.
10.Charge method: USB 5V/0.5A,charge time is about 30 minutes.
11. Work environment temperature: -20℃~60℃
12. Indicator light states:
A. normal work: green light maintain light.
B. read tag ID: green light flashes.
C. Read tag block data: green light flashes.
D. Equipment malfunction: light does not shine.
E. Low power : green light has been slow blink ( low power alarm, please charge as soon as possible )
F. Ultra low power: green light always flash rapidly ( low power can't use, can't read card)
G. In charge: long red light.
H. Charge electricity finished: long green light.
Apple phone applicable models:
iPhone4 iPhone4S iPad2 iPhone5
