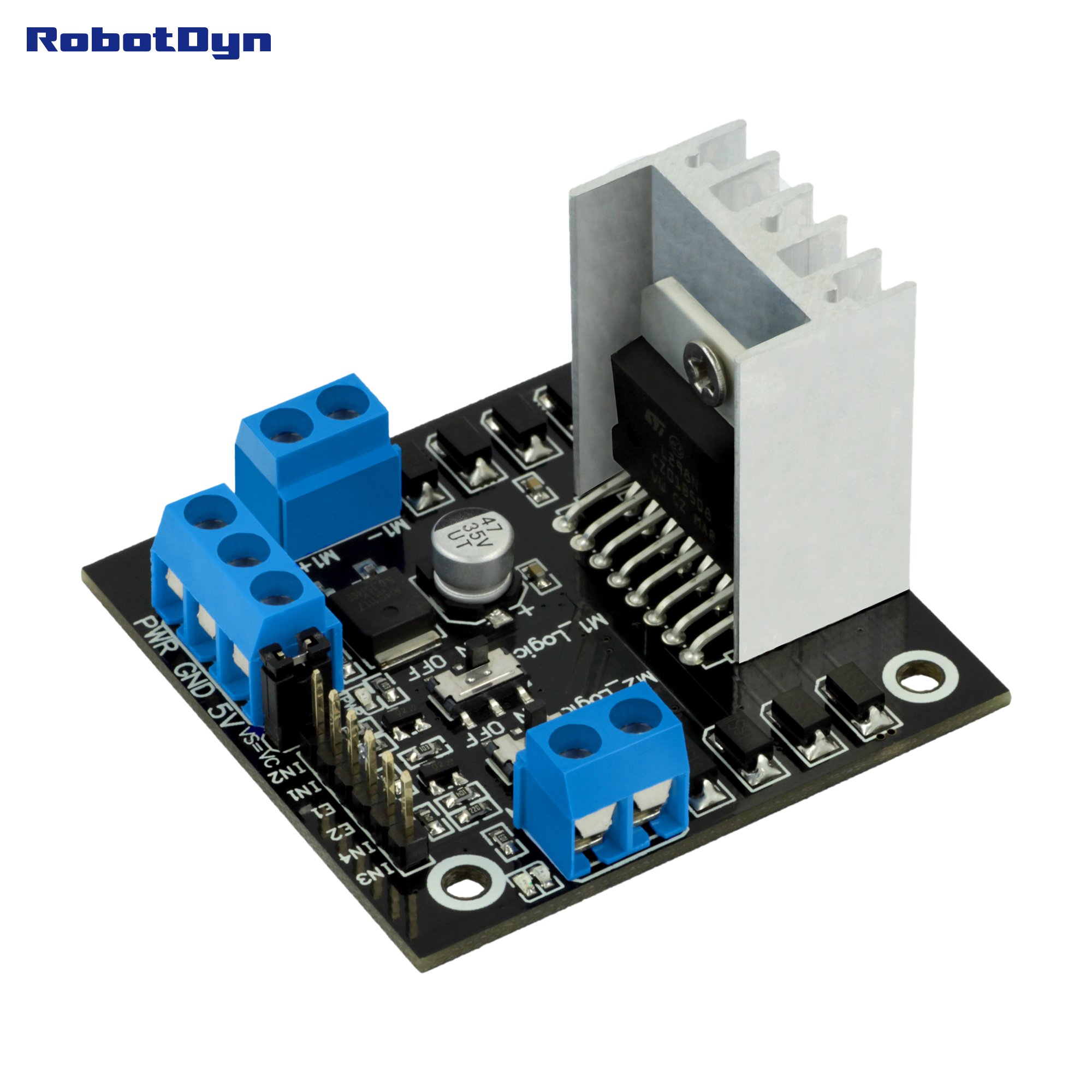

RobotDyn - Motor Driver with Additional Logic System, L298N for 2 DC-Motors or 1 Stepper Motor (4A), for Arduino Uno, Mega, Leonardo, STM32, Raspberry pi

[Music] hi Fox today I am going to show you how you can use l-29 8 and motor driver module with this driver module you can run either 2 DC motors or a single stepper motor well in this video you will learn how to control 2 DC motors ok let me explain the connections of this module in this module you can see 2 connectors on either sides to connect 2 DC motors you can connect one motor on left connector and other motor on right connector here is the power supply parts for the module this module supports 6 watt to 35 volt but if you are using more than 12 volt then don't forget to remove the jumper because power passes through the jumper to the 5 volt regulator which works on 6 to 12 volts that is why it is compulsory to remove the jumper if voltage is more than 12 and yes this is the 5 volt output you can use this output to power your Arduino board or any other microcontroller [Music] whi
