Description
Features:
Protection: the step-up power regulator is designed with input over-current protection, battery low voltage protection, input MOS reverse polarity protection, short circuit protection.
Speacial Design: the voltage transformer is equipped with thickening radiator and intelligent temperature control cooling fan.
Built-in radiator and cooling fan to help heat dissipation quickly.
Specifications:
Module name: 1500 W boost constant current module
Module properties: non-isolated module boost (BOOST)
Operating temperature: -40 ~ + 85 degrees
Operating frequency: 150 kHz
Conversion efficiency: 92% -97% (efficiency affects input voltage, output voltage, amperage and pressure)
Installation: 4 pcs. 3 mm column
Connection mode: terminal blocks (please use high current and Pure copper wire)
Module size: 130 mm x 52 mm x 84 mm (L x W x H)
Input voltage: 10-60 V
Input current: 30A (10-30 V input)
25A (31-60 V input)
Static operating current: 15mA
Output voltage: 12-90 V continuous adjustment (default output 19 V)
Output current: MAX 20A, more than 15a please amplify the cooling (affect the input and output, Differential pressure, higher pressure level between input voltage and output voltage, the less current there is)
DC current range: 0.8-20A (+/- 0.3A)
Output power: = input voltage x 30A
Package includes :
1x1500 W DC Acceleration Module
Notes:
It is necessary to lower the battery protection voltage, no matter using the battery, switching power supply, solar panel, or generator etc as the input source, otherwise it will damage the battery and power module.
Protection: the step-up power regulator is designed with input over-current protection, battery low voltage protection, input MOS reverse polarity protection, short circuit protection.
Speacial Design: the voltage transformer is equipped with thickening radiator and intelligent temperature control cooling fan.
Built-in radiator and cooling fan to help heat dissipation quickly.
Specifications:
Module name: 1500 W boost constant current module
Module properties: non-isolated module boost (BOOST)
Operating temperature: -40 ~ + 85 degrees
Operating frequency: 150 kHz
Conversion efficiency: 92% -97% (efficiency affects input voltage, output voltage, amperage and pressure)
Installation: 4 pcs. 3 mm column
Connection mode: terminal blocks (please use high current and Pure copper wire)
Module size: 130 mm x 52 mm x 84 mm (L x W x H)
Input voltage: 10-60 V
Input current: 30A (10-30 V input)
25A (31-60 V input)
Static operating current: 15mA
Output voltage: 12-90 V continuous adjustment (default output 19 V)
Output current: MAX 20A, more than 15a please amplify the cooling (affect the input and output, Differential pressure, higher pressure level between input voltage and output voltage, the less current there is)
DC current range: 0.8-20A (+/- 0.3A)
Output power: = input voltage x 30A
Package includes :
1x1500 W DC Acceleration Module
Notes:
It is necessary to lower the battery protection voltage, no matter using the battery, switching power supply, solar panel, or generator etc as the input source, otherwise it will damage the battery and power module.

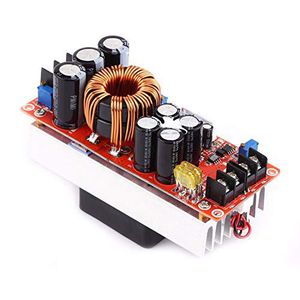

1 Pc. 1500W 30A DC-DC High Current DC DC Power Supply Module Electrical Power Module Board DC Boost Power Supply Module
