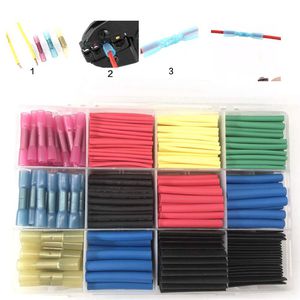

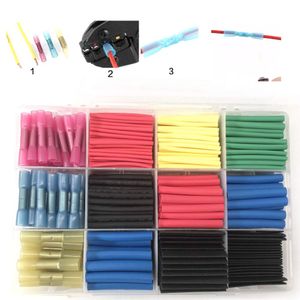

Wire Butt Connectors Specification:

Minimum shrink temperature: 80°C Full recovery temperature: 130°C

Operating temperature: from -55°C to 125°C Shrinkage Ratio is 3:1

Connectors Size:

30 x Red Connectors: Diameter 4.7 mm, Cable cross-section 0.5-1.0 mm² (A.W.G.:22-18)

25 x Blue Connectors: Diameter 5.5mm, Cable cross-section 1.5-2.5 mm² (A.W.G.:16-14)

15 x Yellow Connectors: Diameter 6.7 mm, Cable cross-section 4.0-6.0 mm² (A.W.G.:12-10)

Heat shrink Tubing Specification:

Quantity: 530 pcs

Single Length: 45 mm

Material: Polyolefin Supplied internal

Shrinkage Ratio: 2:1

Minimum Shrinkage Temp: +70буC

Full Shrinkage Temp: +110буC maximum

Supplied format (round or flat): Product is supplied flat

Package includes: (Quantity x Supplied internal diameter x Color)

160pcs x Φ1.5mm x Red

100pcs x Φ2.0mm x Yellow

80pcs x Φ2.5mm x Green

60pcs x Φ3mm x Black

40pcs x Φ 4mm x Red

25pcs x Φ5mm x Blue

20pcs x Φ6mm x Blue

25pcs x Φ10mm x Black

20pcs x Φ13mm x Black
