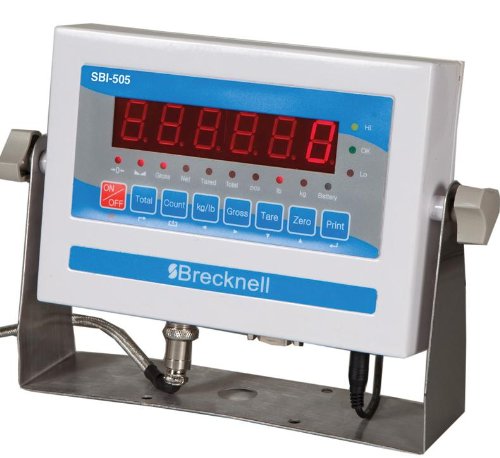

Salter Brecknell Digital LED Indicator SBI-505,NTEP,Legal For Trade by Brecknell

welcome to a print function and communication tutorial for the sbi 505 indicator by brecknell to change the print settings so that the indicator can communicate with the printer and print first connect the indicator to the printer using an rs-232 cable from the indicator and from the printer make sure to use a null modem cable or a null adapter to connect the rs-232 cables then turn on the indicator and press the total and print keys at the same time then use the zero key to scroll up until the number eight is shown on the display next use the kglb key to scroll over and then scroll up until 1 is shown on the display next press print to enter the communication settings menu once there scroll up until 2 is shown this will activate the print function then to confirm the setting change and exit the menus press the count key then place a weight on the scale and press the print key the print
