Description
Features
* Advanced switchmode design
* Mount in almost any location
* Compact and light weight
* High efficiency
* Cycle by cycle current limiting circuit
* Overvoltage, Short Circuit and Reverse Polarity protection
* 2 Year Warranty
Applications
* Earth moving equipment
* Heavy trucks
* Buses
* Marine vehicles
* CB radios
* 12 Volt lighting systems
* AM/FM sound systems
SPECIFICATION
* Input Voltage Range: 20-32 VDC
* Output Voltage: 13.8 VDC
* Output Current: 60 Amps
* Weight: 2.8 lbs (0.45 kg)
* Dimensions: 5.5" x 3.5" x 3.75"
* Warranty: 2 Years
* Input to output isolation : Not isolated. Input and output connections have a common negative
* Output voltage regulation: 3%
* Input current at no load: < 50 mA
* Current limit: 70A
* Output ripple and noise: less than 50 mV RMS
* Efficiency Approx.: 92%
* Operating ambient temperature: - -20 to +30o
* Humidity Max. 95%, non condensing
* Protections:
- Overload By current limiting
- Over heating Drop in output voltage
- Reverse polarity Fuse protection, 10A
- Over voltage Varistor (also protects against load dump)
* Input side fuse: 60 A (2 pieces of 32V, 30A in parallel)
* Safety and EMC Standards:
- Emission: EN50081-1
- Immunity: EN50082-1
- Automotive directive : 95/54/CE
* Input / output connections: Terminal Block - M6 Bolt and Nut
* Advanced switchmode design
* Mount in almost any location
* Compact and light weight
* High efficiency
* Cycle by cycle current limiting circuit
* Overvoltage, Short Circuit and Reverse Polarity protection
* 2 Year Warranty
Applications
* Earth moving equipment
* Heavy trucks
* Buses
* Marine vehicles
* CB radios
* 12 Volt lighting systems
* AM/FM sound systems
SPECIFICATION
* Input Voltage Range: 20-32 VDC
* Output Voltage: 13.8 VDC
* Output Current: 60 Amps
* Weight: 2.8 lbs (0.45 kg)
* Dimensions: 5.5" x 3.5" x 3.75"
* Warranty: 2 Years
* Input to output isolation : Not isolated. Input and output connections have a common negative
* Output voltage regulation: 3%
* Input current at no load: < 50 mA
* Current limit: 70A
* Output ripple and noise: less than 50 mV RMS
* Efficiency Approx.: 92%
* Operating ambient temperature: - -20 to +30o
* Humidity Max. 95%, non condensing
* Protections:
- Overload By current limiting
- Over heating Drop in output voltage
- Reverse polarity Fuse protection, 10A
- Over voltage Varistor (also protects against load dump)
* Input side fuse: 60 A (2 pieces of 32V, 30A in parallel)
* Safety and EMC Standards:
- Emission: EN50081-1
- Immunity: EN50082-1
- Automotive directive : 95/54/CE
* Input / output connections: Terminal Block - M6 Bolt and Nut

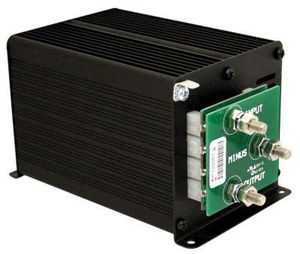

SAMLEX SDC-60 60A 24V TO 12V DC VOLTAGE CONVERTER
