Beyondtech manufactures a wide range of fiber LGX style (Footprint) Adapter plates where precision alignment, high reliability, and reconnectable are the primary concerns.

The plates are fully interchangeable for different applications and different products including wall ODF and Fiber patch panels and boxes.

LGX Plates could be used in a wide range of telecom applications like Data centers, Fiber infrastructure, security boxes among others.

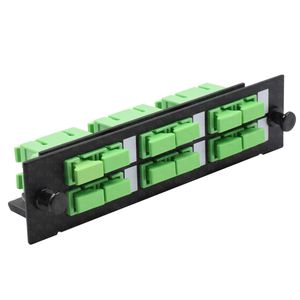

This Duplex Horizontal Singlemode SC APC LGX Adapter Plate is used to mate two SC connectors together mounted in a distribution panel or wall box.

• Supplied with SC adapters pre-loaded (Lock and Run).
• Fully Compatible with Duplex Horizontal couplers from Beyondtech.
• Color of Adapter: Green
• Quantity of installed adapters: 6 Units.
• Color of plate: Black (RAL9004)
• Coating Material:Electro Static Powder Coating
• Ultra Physical Contact (APC)
• Singlemode
• Duplex Horizontal
• Complies with TIA/EIA 568.C, ISO/IEC 11801, EN 50173, IEC 60304, IEC 61754, EN 297-1
• RoHS compliant
