Description

Specification:
Model: SCT-013-000
Type: Non-invasive current transformer
Core Material: Ferrite
Input Current: 0~100A AC
Output Mode: 0~50mA
Leading Wire in Length: 1m
Turns Ratio: 1: 1800
Work Voltage: 660 v
Resistance Grade: Grade B
Max Sampling Resistance: 10 Ω
Linearity: ±3%
Accurancy: ±1%
Work Frequency: 50-1 KHz
Work Temperature: -25˚C ~ 70˚C
Reference project: Open Energy Monitor
Dielectric Strength: 6000V AC/1min
Opening Size: 0.51 * 0.51inch / 13 x 13mm
Two Form of Output: current output or voltage output (a burden resistor needed to add);
Mechanical strength: opening and closing times, no less than 1000 times (20 ℃)
High Quality and Safe: Meet the requirement of flame-retardant characteristics (UL94-V0)
Applications:
For AC motors, lighting equipment, air compressors and other current measurement,monitoring and protection.

Package include:

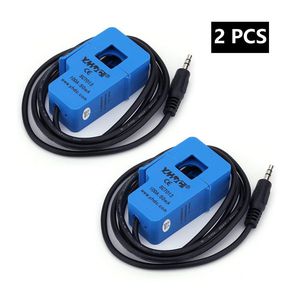

2 PCS Split Core Current Transformer SCT-013-000

Insruction
100% Satisfaction Guarantee:
12-Month Warranty; No satisfied ,Free reason for return; We could also resend you new one due to quality problem.

SCT-013-000 Non-invasive AC Current Sensor Split Core Transformer 100A
