Description

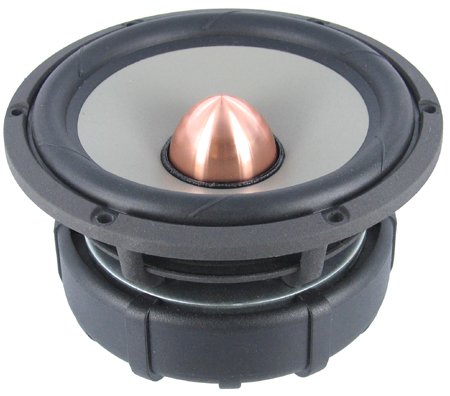

SEAS Excel W16NX-001 (E0049-04) 6" Magnesium Cone Woofer 4 ohm Precision cast, machined and surface treated magnesium cone acts as a piston through the audible frequency band without showing any sign of midrange resonances. A unique radial reinforced rubber surround reduces radial resonances and prevents surround break up at large excursions. Heavy copper rings mounted above and below the T-shaped pole piece reduce non linear and modulation distortion and increase overload margin. A copper phase plug reduces compression due to temperature variations in the voice coil, increases long term power handling capacity and eliminates resonances in the cavity inside the voice coil former. The extremely stiff and stable injection moulded metal basket keeps the critical components in perfect alignment. Large windows in the basket both above and below the spider reduce sound reflection, air flow noise and cavity resonance to a minimum. Suggested box alignments: Sealed box of 0.15 cubic feet for an F3 of 95Hz. 50% filling Vented box of 0.25 cubic feet for an F3 of 55Hz. 1" diameter vent by 4.25" long Vented box of 0.50 cubic feet for an F3 of 4OHz. 2" diameter vent by 7" long
Seas Excel W16NX-001-04 6" Magnesium Cone Woofer, 4 ohm (E0049-04S)- Each
Current Price
$305.6
Average
$297.55
Min Price
$289.5
Max Price
$305.6
Price dynamics
3%
Description
SEAS Excel W16NX-001 (E0049-04) 6" Magnesium Cone Woofer 4 ohm Precision cast, machined and surface treated magnesium cone acts as a piston through the audible frequency band without showing any sign of midrange resonances. A unique radial reinforced rubber surround reduces radial resonances and prevents surround break up at large excursions. Heavy copper rings mounted above and below the T-shaped pole piece reduce non linear and modulation distortion and increase overload margin. A copper phase plug reduces compression due to temperature variations in the voice coil, increases long term power handling capacity and eliminates resonances in the cavity inside the voice coil former. The extremely stiff and stable injection moulded metal basket keeps the critical components in perfect alignment. Large windows in the basket both above and below the spider reduce sound reflection, air flow noise and cavity resonance to a minimum. Suggested box alignments: Sealed box of 0.15 cubic feet for an F3 of 95Hz. 50% filling Vented box of 0.25 cubic feet for an F3 of 55Hz. 1" diameter vent by 4.25" long Vented box of 0.50 cubic feet for an F3 of 4OHz. 2" diameter vent by 7" long
Price will be lower
in next 2 weeks
in next 2 weeks
According to the data, price will be lower in next two weeks, so not waste your money and track better price!
