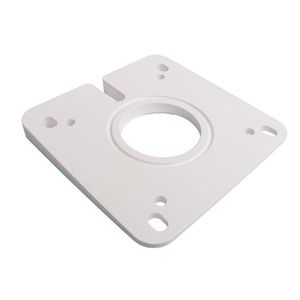

SEAVIEW RW4-3 / SeaView RW4-3 4 Degree Wedge f/Open Array Radars

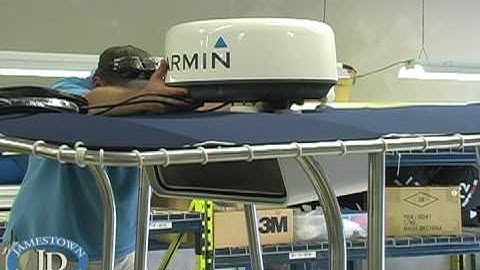

welcome to the Jamestown distributors workshop the latest project done here was the installation of a Garmin radar to the 1970 sea craft this installation requires an in-depth knowledge of wiring schematics so it's highly recommended to have a professional install it here's the video of TJ's selling the Garmin radar first TJ determine the best possible location to mount the radome TJ had to fabricate some shims out of kink starboard to make the radome parallel to the waterline then he taped the mounting template in place and drilled the four and three-eighths mounting holes then he installed before supplied threaded mounting rods next he installed the two pin power cable and the rj45 marine network cable then he installed the small supplied plate to prevent the wires from twisting next TJ sanded and flame treated the starboard shims so the silicone would adhere and provide a weather tig
