Description

The USB-CAN Analyzer is a very economical USB-CAN Analyzer, With this very high quality, reliable and portable Analyzer, it would be very convenient for you to develop, test, manage, and maintain CAN Bus network, as well as receiving, sending, analyzing CAN data.

Features
Optimized the conversion protocol, improved conversion efficiency.
Saving customized setting automatically.
Hex number converts to Decimal number visualized in the software. Decimal number show both value with symbol and without symbol, don't need to use calculator.
Customized receiving ID, easy to debug.
Visualized CAN bus status. Convenient for analyze CAN Bus problem.
Can be saved as Excel or TXT file.
Receiving data can be refreshed and checked in order.

Hardware
Integrated TVS Surge Protection
Including 120 ohm matched resistance.

Software: Basic Function
Support CAN2.0A(Standard) and CAN2.0B（Expansion）
CAN baud rate（5K~1M）, customized CAN baud rate.
CAN send and receive data with time tag，can show the receiving data in order，can refresh data easily.
Data can be sent by single frame, multiple frames, manually, regularly, you can even set a certain time to send.

Software: Enhanced Function
Response to data that received from a certain ID.
Can check CAN Bus status manually.
Can set to receive from the wanting ID directly, without setting filtering ID or shield ID.
4 working mode
Standard Mode: CAN communication
Loop Mode: Self testing, in this mode, the analyzer will send and receive data itself, and also send data to CAN Bus.
Quiet Mode: Only use to monitor CAN Bus without influence.
Loop Quiet Mode: Warm testing
Baud rate of virtual COM port can also be modified, default baud rate over 1M, so don't need to worry about conversion efficiency.

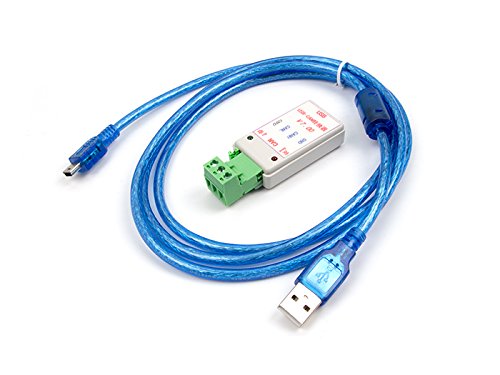

Seeedstudio USB-CAN Analyzer

Price is below average

Get price

Current Price

$26.9

Average

$30.37

Min Price

$24.9

Max Price

$49.99

Price dynamics

11%

Description

Hardware
Integrated TVS Surge Protection
Including 120 ohm matched resistance.

According to the data, price will be lower in next two weeks, so not waste your money and track better price!
