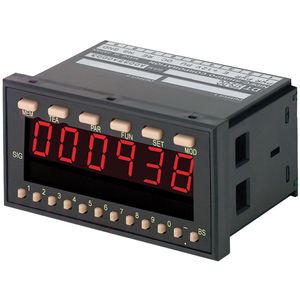

The Shimpo DT-5TS-DC panel-mount tachometer with 9 to 35VDC power accepts input from a variety of sensors, includes selectable input signals, and has a six-digit red LED display. This panel-mount tachometer accepts input from NPN open collectors, contact sensors, square wave sensors, and sine wave sensors, and is used for measuring rotational and linear speed from 10 to 99,999rpm with accuracy to + or - 0.008 percent, as well as elapsed time and process time. Selectable input signals and display update time allow the operator to monitor, control, and analyze a wide variety of processes. The six-digit red LED display with selectable decimal point and two secondary six-digit displays presents clear test results. The front cover is rated to IP 66 level of protection against dust and high-pressure water jets, and the panel measures 1/8 DIN according to Deutsches Institut für Normung (DIN) and International Electrotechnical Commission (IEC) 61554 for industry-standard mounting. This tachometer tolerates a voltage range of 9 to 35VDC at 1 watt, and it provides DC voltage to power-compatible sensors. It comes with mounting adapters, mounting screws, a decal sheet, and instructions. This tachometer is suitable for measuring rotational speed and other measurements in mechanical or industrial engineering environments.
Specifications
| Range | 10 to 99,999rpm (at 1 p/r), 0.2 to 30,000rpm (at 60 p/r) | ||||||||||
| Accuracy | +/-0.008% +/-1 digit | ||||||||||
| Display update time | 0.2, 0.5, 1, 2, 5, 10, 15, 30, and 60 seconds (selectable) | ||||||||||
| Input signal characteristics | NPN open collector maximum frequency 100kHz; contact closure maximum frequency 20Hz; square wave maximum frequency 30kHz; sine wave (magnetic pickup) maximum frequency 10kHz | ||||||||||
| Sensor power supply | 1Shimpo DT-5TS-DC Digital Panel Mount Tachometer, 9-35 VDC Power Supply, 6 Digit 0.59" LED Display, -0.008% +/-1 Digit Accuracy, 3.62" Length x 3.78" Width x 1.89" HeightCurrent Price $230 Average $129.21 Min Price $45.43 Max Price $230 Price dynamics 44% Description The Shimpo DT-5TS-DC panel-mount tachometer with 9 to 35VDC power accepts input from a variety of sensors, includes selectable input signals, and has a six-digit red LED display. This panel-mount tachometer accepts input from NPN open collectors, contact sensors, square wave sensors, and sine wave sensors, and is used for measuring rotational and linear speed from 10 to 99,999rpm with accuracy to + or - 0.008 percent, as well as elapsed time and process time. Selectable input signals and display update time allow the operator to monitor, control, and analyze a wide variety of processes. The six-digit red LED display with selectable decimal point and two secondary six-digit displays presents clear test results. The front cover is rated to IP 66 level of protection against dust and high-pressure water jets, and the panel measures 1/8 DIN according to Deutsches Institut für Normung (DIN) and International Electrotechnical Commission (IEC) 61554 for industry-standard mounting. This tachometer tolerates a voltage range of 9 to 35VDC at 1 watt, and it provides DC voltage to power-compatible sensors. It comes with mounting adapters, mounting screws, a decal sheet, and instructions. This tachometer is suitable for measuring rotational speed and other measurements in mechanical or industrial engineering environments. Specifications
|
