Description

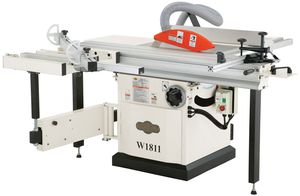

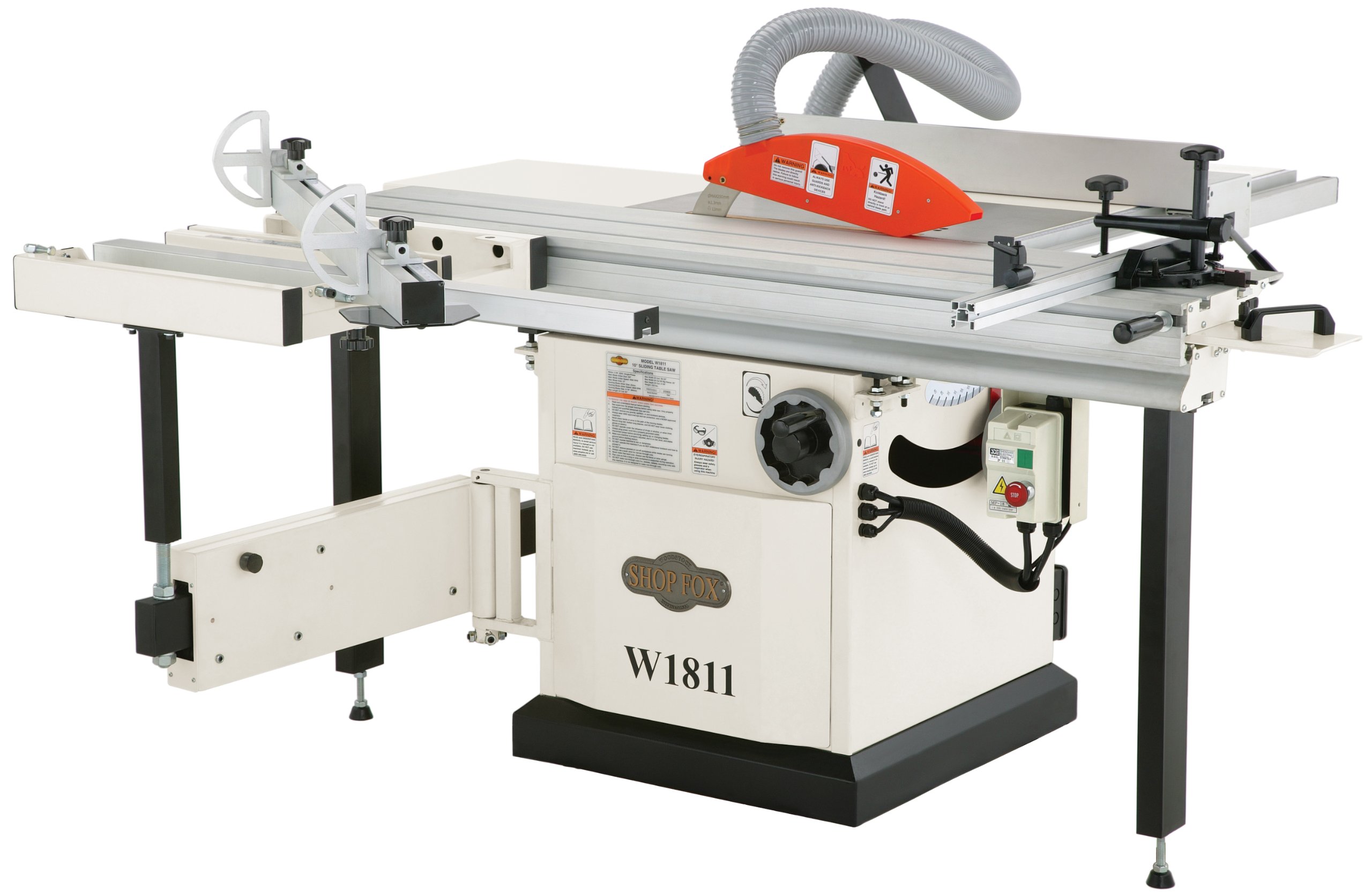

This 10" Sliding Table Saw features a scoring blade to eliminate cross grain tear-out, a 63" long crosscut capacity, telescoping crosscut fence with two rock-solid flip stops, fully-adjustable miter fence with its own flip stop, two-position extruded-aluminum rip fence, riving knife, and large blade guard with integral dust port. This 10" Sliding Table Saw makes quick work of all standard plywood panels. Accepts 10" saw blades with 5/8" arbor bores or dado blades up to 13/16" wide. Certified to CSA standards! Specifications: Motor: 5 HP, 230V, single-phase, TEFC, 3450 RPM, 19A. Blade tilt: 0° - 45°. Table size w/o extension wings: 27"L x 14-3/8"W. Table size w/ extension wings: 47"L x 40"W. Sliding table size: 63"L x 12-1/4"W. Main blade arbor speed: 4000 RPM. Main blade dia.: 10". Main blade arbor dia.: 5/8". Scoring blade dia.: 3-1/8". Scoring blade arbor dia.: 22mm. Scoring blade arbor speed: 8000 RPM. Max. dado width: 13/16". Max. depth of cut at 90°°: 3-1/8". Max. depth of cut at 45°: 2-1/4". Max. ripping width with standard rip fence: 33". Max. crosscut width with crosscut fence: 78-1/2". Max. crosscut length with crosscut fence: 63". Overall size: 76"L x 124-3/4"W x 46"H. Space required for full range of movement: 123" x 150". Dust ports: 4" main, 2-1/2" on blade guard. Shielded/ lubricated bearings. Includes extended-reach push stick. Magnetic switch with thermal overload protection. Approx. shipping weight: 688 lbs.
