Description
Specification:
Type: TFT Display Module
Display Mode: Standard
Size:
Welded Type: 1.3 x 4.4cm
Spliced Type:1.3 x 5.1cm
Quantity: 1 Pc
Product Parameters:
LCD Size: 0.96in
Resolution Ratio: Graphic 80RGB x 160 Dot-Matrix
Diver IC: ST7735
LCD Color: 65K Full Color
Display Area: 10.08(W) x 21.70(H)mm
Hardware Interface: SPI Interface
Operating Voltage: 3.3V
Connect Method: Welded(13PIN), Spliced(8PIN)
Working Temperature: -20-70°
Note:
1. No retail package.
2. Please allow 0-1cm error due to manual measurement. pls make sure you do not mind before you bid.
3. Due to the difference between different monitors, the picture may not reflect the actual color of the item. Thank you!
4. TFT Display Module only, other accessories demo in the picture is not included.
Package includes: 1Pc x TFT Display Module

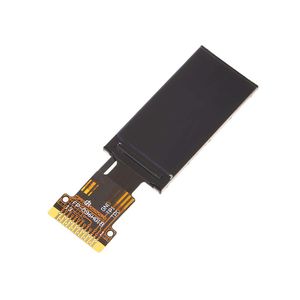

Sixsons TFT Display Module IPS 0.96in Screen Panel SPI HD LCD Full Color ST7735 Drive Welded Spliced Link 80x160
