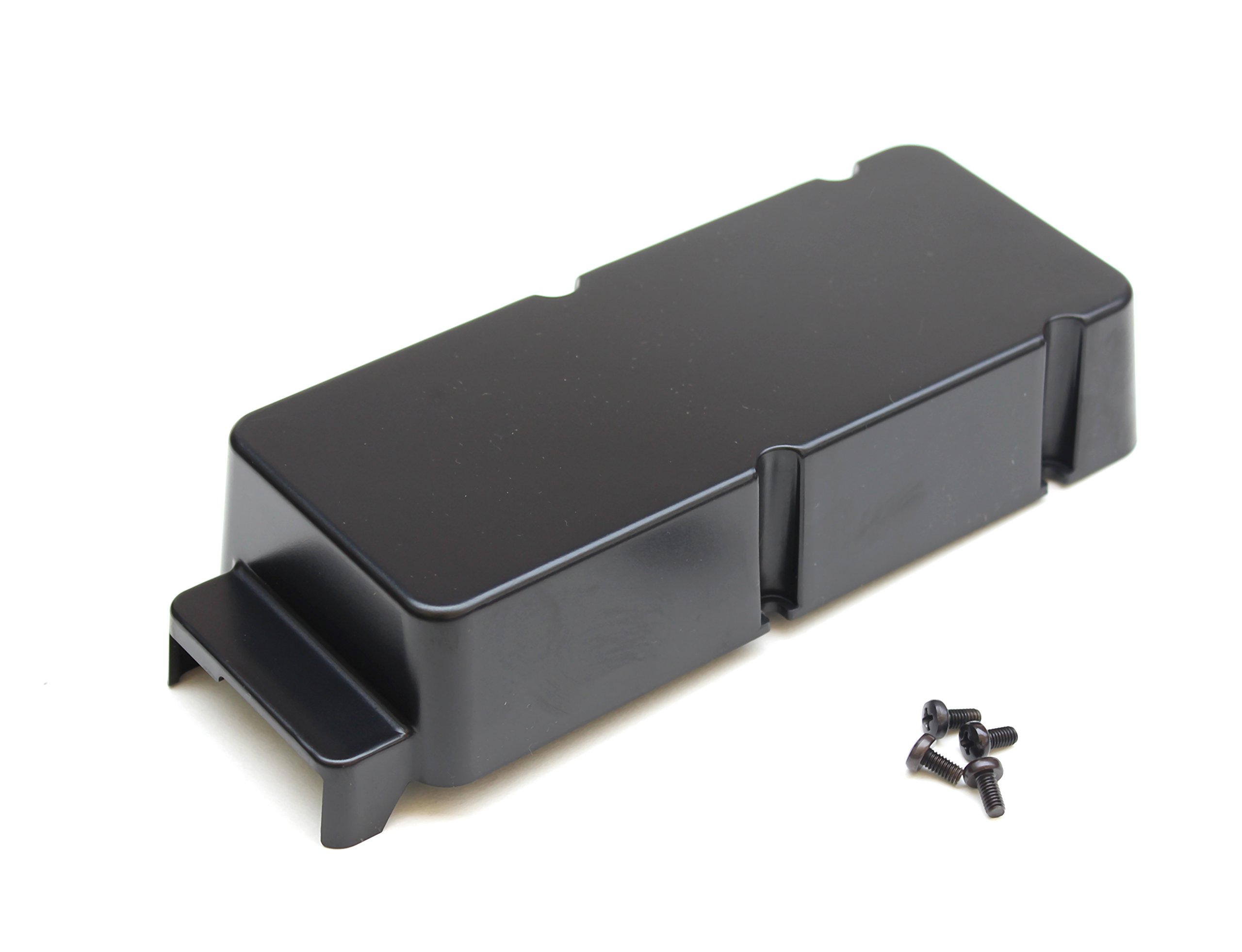

SmartiPi Touch 1 Back Cover - 37mm deep

Place the four round rubber pads on the bottom of the base. Press firmly. Place one of the black adhesive foam rectangles centered inside the rectangle on the bottom of the door. Place the other black adhesive foam rectangle in this area. One edge close to the bottom. Assemble the black bolts and nuts into the hinges. Do not overtighten. Secure the display control board onto the back of the display with the threaded spacers supplied with the display. Assemble the supplied white ribbon cable into the display control board with the contacts facing up. Place the display into the case and route the cable through the hole. Use the four black screws to secure the display into the case. Assemble the ribbon cable into the Pi and insert into case. The pi can be secured with the door or with the two small screws provided. It cannot be secured with both at the same time. Make sure the pivot bolts
