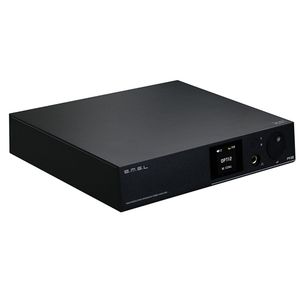

A8 digital amplifier developed and launched with co-operation from ICEpower company
Specification:
Type: Power Amplifier DAC and Headphone Amplifier
Input: USB/Opticalx2/Coaxialx2/Analogx2/MM PHONO
Output: CD analog/ DAC/RCA output
THD+N: DAC 0.0017%
　　　 Headphones 0.0037%
　　　 Speakers 0.007%
Dynamic range: DAC 118 dB
SNR: DAC 110 dB
Headphones 101 dB
Speakers 120 dB
USB transmission: Asynchronization
USB compatibility: windows XP/7/8/8.1/10,Mac OSX10.6 or later,Linux
Bit Depth: USB 16bit 24bit 32bit 1bit
Optical/Coaxial:16bit 24bit
Sampling rate: USB PCM 44.1kHz-768kHz/DSD 2.8224MHz-22.5792MHz
Optical/ Coaxial:44.1kHz-192kHz
Amplifier power: 4ohm 125Wx2
8ohm 75Wx2
Headphone amplifier power:
32ohm 43mw
64ohm 35mw
150ohm 23mw
300ohm 14mw
DAC output level: 2Vrms
Amplifier consumption: 90W
Standby power: 4.5W
The unit size:25x20.5x5 cm
Weight:2.6kg
