Description
Features:
Supports MQA decoding;
The top performance D/A chip ES9038PRO from ESS Technology;
The high-performance power supply chip ES9311, the noise of ES9311 is as low as 1uVrms, to push ES9038PRO to the limit;
XMOS XU-208, true 32bit audio processing, supports DoP and Native DSD, and reaches 32bit/768kHz and DSD512;
Ultra-low phase noise and optimized clock processing circuit are used to achieve ultra-low clock jitter;
All inputs support DSD streaming, including coaxial and optical (DoP64);
Independent headphone volume design, does not interfere with the preamp volume;
Special design of discrete components high current headphones amplifier for higher damping factor;
Use tempered glass display panel for higher light transmission and longer service life;
Built-in shielded, low noise power supply processing, while improving power efficiency, lower power consumption;
High quality gold-plated input and output jacks;
3 high-end dual op-amps OPA1612 and a lot of audio grade components are used;
2.19 inch LG TFT LCD display;
JAS Hi-Res certification;
Equipped with remote control and full-function remote control.
Specifications:
Input: USB / Opticalx2 / Coaxial
Output :RCA Headphone Amplifier/ RCA /XLR
THD+N :0.00015%
Dynamic range : XLR 125dB
RCA 120dB
SNR :120dB
USB transmission :Asynchronization
USB compatibility:Windows 7 / 8 / 8.1 / 10, Mac OSX10.6 or Later、Linux
Bit depth :USB 1bit, 16 ~ 32bit
Optical / Coaxial 1bit, 16 ~ 32bit
Sampling rate :USB PCM 44.1 ~ 768kHz
DSD 2.8224 ~ 22.5792MHz
Optical / Coaxial PCM 44.1 ~ 192kHz
DSD DSD64(DoP)
Headphone amplifier output power:
570mW(32Ω)
290mW(64Ω)
125mW(150Ω)
65mW(300Ω)
Power Consumption :5W
Standby power : <0.5W
Size : 85x88x197mm (WxHxD)
Weight :0.91kg

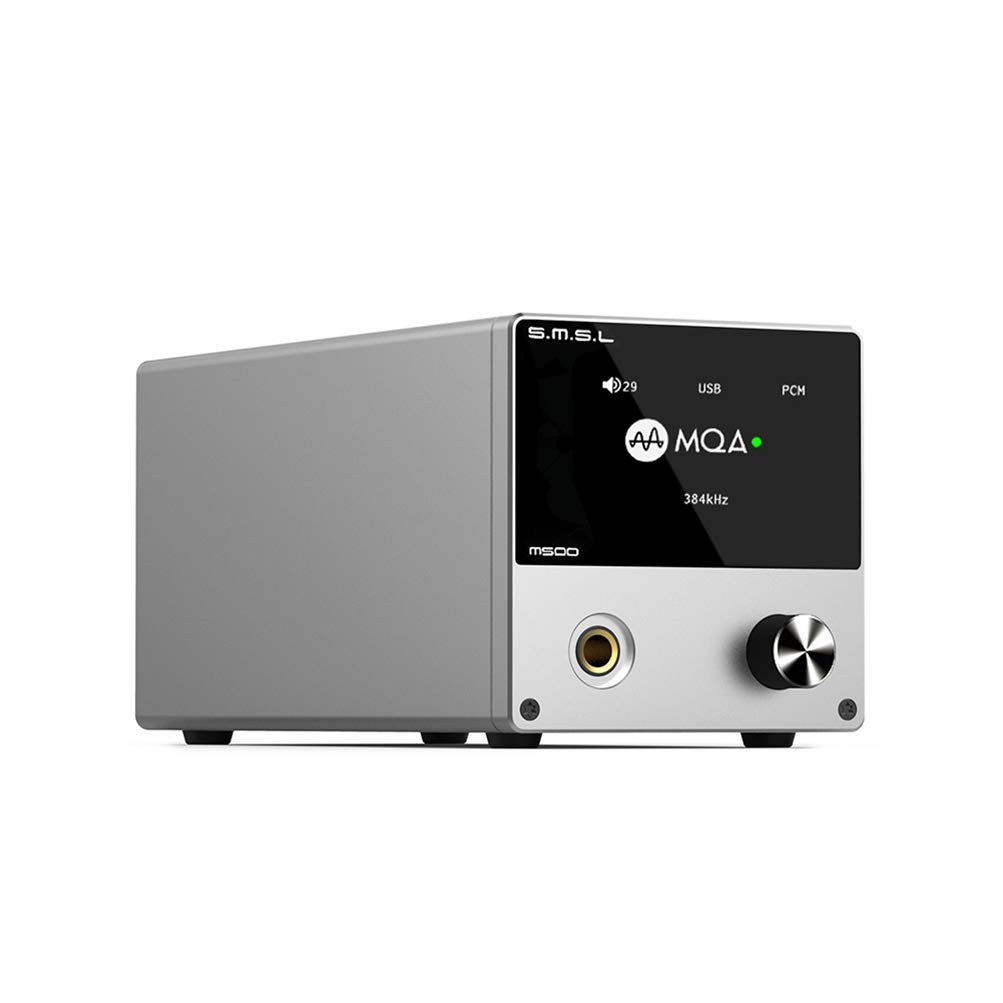

S.M.S.L M500 Headphone Amplifier USB Decoder ES9038PRO MQA DAC XMOS XU-216 HiFi Audio Dac Amplifier
Current Price
$399.99
Average
$389.99
Min Price
$359.99
Max Price
$399.99
Price dynamics
3%
Description
Features:
Supports MQA decoding;
The top performance D/A chip ES9038PRO from ESS Technology;
The high-performance power supply chip ES9311, the noise of ES9311 is as low as 1uVrms, to push ES9038PRO to the limit;
XMOS XU-208, true 32bit audio processing, supports DoP and Native DSD, and reaches 32bit/768kHz and DSD512;
Ultra-low phase noise and optimized clock processing circuit are used to achieve ultra-low clock jitter;
All inputs support DSD streaming, including coaxial and optical (DoP64);
Independent headphone volume design, does not interfere with the preamp volume;
Special design of discrete components high current headphones amplifier for higher damping factor;
Use tempered glass display panel for higher light transmission and longer service life;
Built-in shielded, low noise power supply processing, while improving power efficiency, lower power consumption;
High quality gold-plated input and output jacks;
3 high-end dual op-amps OPA1612 and a lot of audio grade components are used;
2.19 inch LG TFT LCD display;
JAS Hi-Res certification;
Equipped with remote control and full-function remote control.
Specifications:
Input: USB / Opticalx2 / Coaxial
Output :RCA Headphone Amplifier/ RCA /XLR
THD+N :0.00015%
Dynamic range : XLR 125dB
RCA 120dB
SNR :120dB
USB transmission :Asynchronization
USB compatibility:Windows 7 / 8 / 8.1 / 10, Mac OSX10.6 or Later、Linux
Bit depth :USB 1bit, 16 ~ 32bit
Optical / Coaxial 1bit, 16 ~ 32bit
Sampling rate :USB PCM 44.1 ~ 768kHz
DSD 2.8224 ~ 22.5792MHz
Optical / Coaxial PCM 44.1 ~ 192kHz
DSD DSD64(DoP)
Headphone amplifier output power:
570mW(32Ω)
290mW(64Ω)
125mW(150Ω)
65mW(300Ω)
Power Consumption :5W
Standby power : <0.5W
Size : 85x88x197mm (WxHxD)
Weight :0.91kg
Price will be lower
in next 2 weeks
in next 2 weeks
According to the data, price will be lower in next two weeks, so not waste your money and track better price!

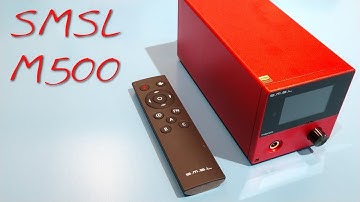

Product review & video
I asked MSL m500 graciously provided to me by the nice folks at Haifa Express so there'll be a 15 vs. 15 dollar coupon from them it is also available on Amazon if you search it out this is SMS Elle's latest greatest immaculately capable balanced outputting preamp DAC headphone amp even has a high res sticker on the top so you know they're serious and if I can pull this a little just just get given it is pretty large actually and the reason it's big is because this is the first unit you plug 110 into the back of it most of the SM SL stuff is those little tiny cubes like the 100mm 300 old little baby cubes running USB power etc this this is big-boy cube actually it's a brick very nice-looking brick so quick tour of the unit I'm using our guns on it there can I um you shut it off long press front power out this out this out this out so the fascia glass and you can tell it's glass because I
