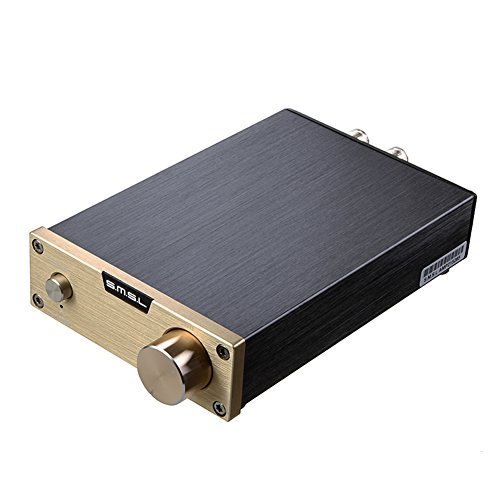

This SA-98E power amplifier chooses ST Microelectronics company's TDA7498E as its core, and collocation other high quality accessories from Panasonic, EPCOS, ALPS, RIFA, ERO companies for providing a high-quality music enjoyment.
It comes with a super short-circuit and over-temperature output overload protection function and its chip efficiency is up to 85pct, so it will not generate too much heat during high power operation, very suitable for long time using.
With the stylish designs and a variety of color choices, it is easier to match a variety of environments.

Main Features
- ERO film capacitors have good performances in full-frequency clarity, sound field depth layering, sound texture, intermediate frequency information and the details
- Panasonic capacitors have characteristics of low leakage current, low internal resistance, high ripple current, excellent properties, warm sound, intermediate frequency thick and natural, high frequency soft and delicate
- ALPS potentiometers are low coloration, low noise, high balance and durable

Specifications
Output power: (DC 36V) 160W/4¦¸; THD=10%
Input Level: 400mv to 2V
Chip efficiency: 85%
Chassis Color: Black
Panel color: Silver
Case material: Aluminum
Chassis technology: drawing, coloring oxide, CNC machining
Screen printing process: laser engraving
Input Interface: RCA sockets (gold plated) stereo input
Power Supply :100-240ACV
Circuit plate: 1.6mm, Immersion Gold of 2OZ (oz) copper, the most advanced processing
Machine Size: 168 x 98 x 36mm (including protruding parts)
Machine weight: 1.25KG with packaging
¡¡
