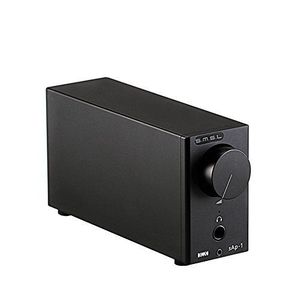

SAP-1 Designed from a rectangle shape which follow space utilization science and human body movement habit. As small as possible for occupying space to provide better user-experience.
SAP-1 aluminum cabinet processed from CNC. Black matting finished surface which meet with eye-ball economic standard and safely use standard. Chamfer design avoid scratching child. Safety performance meet with EU standard.
Features：
Using USA TRIAD Hi-end power transformer as power-supply part
Voltage stabilization uses two pieces of ultra-low noise LN2SB60 rectifier bridge supplied by SHINDE.in Japan.
Rectifying main filter uses two pieces Panasonic 2700uF capacitor
Sound filter part uses Germany ERO film capacitor and Panasonic capacitor
Coupling circuit adopts tow pieces imported EPCOS film capacitor
Headphone amplifier IC uses TPA6120A2, best performance and high-fidelity
Customized steel panel surround main components, that reduces interference to circuit and make sound more pure

Specification:
Model: SMSL SAP-1
Catagory: headphone amplifier
Input jack: RCA
Output jack: 6.35mm headphone jack
Output Power:
32ohm 270mW
64ohm 170mW
150ohm 88mW
300ohm 48mW
THD+N: 0.001%
SNR: 100dB
Power Consumption: 5W
Product dimension (exclude protruding part):149*45*75mm
Product net weight:583g

What You Get?
1 x SMSL Headphones Amplifier
1 x Power Cable
1 x 6.35 to 3.5mm earphone jack converter
1 x User Manual
