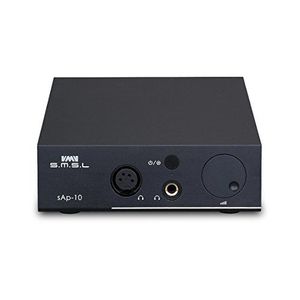

SMSL SAP-10 balanced headphone amplifier
Internal illustration
-Built-in high performance and low-vibration TRAID transformer from USD to power the amp sufficiently.
-Four pieces of 3300uF nichicon FW series audiophile capacitors used in power filter circuit.
-Signal coupling aspect,SAP-10 uses 10 pieces of epcos audiophile standard film capacitor.
-It uses audiophile four channel ultra-low distortion NJW1195 volume control chip which ensure balanced output of right and left channel and absolutely balanced phase.
-Using two pieces of advanced TPA6120A2 headphone amp chip which ensure to offer big power and low distortion.
-Panasonic relays used to protect headphone damage from popping sound and reduce lossless of audio signal.
-All the jacks are gold-plated, durable and reliable.

Specification:
Model: SAP-10
Category: Balanced Headphone Amplifier
Input interface: RCA / XLR
Output interface: four core XLR jack/ 6.35mm headphone jack
SNR:104dB
Headphone amplifier output power (@ THD + N = 0.1%):
Balanced：32 ohm 660mW
300ohm: 170mW
Unbalanced:32 ohm 275mW
300ohm 48mW
Power consumption: 5.5W
Package size:L285*W256*H80mm
Machine size:L205*W155*H47mm
Net weight: 1444g
Gross weight:1867g
Note: The balanced output and the unbalanced output can not be used at the same time!
