Video System1080i/60,1080i/50, 1080p/30, 1080p/25, 720p/60, 720p/50, NTSC, PAL
Sensor 1/3", CMOS, Total Pixel: 2.2M, Effective Pixel: 2.12M
Scanning Mode Progressive
Lens 12x, f3.5mm ~ 42.3mm, F1.8 ~ F2.8
Digital Zoom 16x
Minimal Illumination 0.5 Lux @ (F1.8, AGC ON)
Shutter 1/25s ~ 1/10000s
White Balance Auto, Indoor, Outdoor, One-Push, Manual
Backlight Compensation Support
Digital Noise Reduction 2D&3D Digital Noise Reduction
Video S/N ≥55dB
Horizontal Angle of View 72.5° ~ 6.9°
Vertical Angle of View 44.8° ~ 3.9°
Horizontal Rotation Range ±170°
Vertical Rotation Range -30° ~ +90°
Pan Speed Range 1.7° ~ 100°/s Tilt Speed Range 1.7° ~ 69.9°/s
Ceiling Installation Support
Number of Preset 245
Preset Accuracy 0.1°
Support OS Windows XP,Windows Vista,Windows 7,Windows 8,Mac OS X,Linux
Video format USB3.0:1080p/30,1080p/25,720p/60,720p/50; USB2.0:960X540p/30,960X540p/25,640X360p/60,640X360p/50
USB video communication protocol UVC1.0
UVC PTZ Support
Video coding standardsH264,JPEG
Rate128K,256K,384K,512K,768K,1024K,1536K,2048K,3072K,4096K,5120K,6144K,8192K Optional,or Customed
Input/Output InterfaceHD Output 1xUSB3.0,B-type female; 1x, HDMI: Version1.3; SD Output 1xCVBS: RCA jack, 1Vp-p; Network interface 1xRJ45: 10M/100M Adaptive Ethernet ports; Audio Input 1-ch 3.5mm audio interface, LINE IN; Control Input/Output-1xRS-232 IN: 8pin Min DIN, Protocol: VISCA/Pelco-D/Pelco-P; 1xRS-485: 2pin phoenix port, Protocol: VISCA/Pelco-D/Pelco-P
Input Voltage12V DC (10.8 ~ 13.0V DC)
Current Consumption2.0A (Max)
Operating Temperature-5°C ~ 40°C
Storage Temperature-20°C ~ 60°C

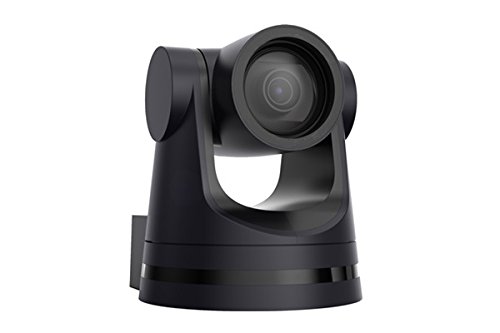

SMTAV-12x optical zoom,high-speed PTZ,HD USB3.0,HDMI,Network stream, three-stream simultaneous output, compatible with CVBS, Video Conference Cameras
Video System1080i/60,1080i/50, 1080p/30, 1080p/25, 720p/60, 720p/50, NTSC, PAL
Sensor 1/3", CMOS, Total Pixel: 2.2M, Effective Pixel: 2.12M
Scanning Mode Progressive
Lens 12x, f3.5mm ~ 42.3mm, F1.8 ~ F2.8
Digital Zoom 16x
Minimal Illumination 0.5 Lux @ (F1.8, AGC ON)
Shutter 1/25s ~ 1/10000s
White Balance Auto, Indoor, Outdoor, One-Push, Manual
Backlight Compensation Support
Digital Noise Reduction 2D&3D Digital Noise Reduction
Video S/N ≥55dB
Horizontal Angle of View 72.5° ~ 6.9°
Vertical Angle of View 44.8° ~ 3.9°
Horizontal Rotation Range ±170°
Vertical Rotation Range -30° ~ +90°
Pan Speed Range 1.7° ~ 100°/s Tilt Speed Range 1.7° ~ 69.9°/s
Ceiling Installation Support
Number of Preset 245
Preset Accuracy 0.1°
Support OS Windows XP,Windows Vista,Windows 7,Windows 8,Mac OS X,Linux
Video format USB3.0:1080p/30,1080p/25,720p/60,720p/50; USB2.0:960X540p/30,960X540p/25,640X360p/60,640X360p/50
USB video communication protocol UVC1.0
UVC PTZ Support
Video coding standardsH264,JPEG
Rate128K,256K,384K,512K,768K,1024K,1536K,2048K,3072K,4096K,5120K,6144K,8192K Optional,or Customed
Input/Output InterfaceHD Output 1xUSB3.0,B-type female; 1x, HDMI: Version1.3; SD Output 1xCVBS: RCA jack, 1Vp-p; Network interface 1xRJ45: 10M/100M Adaptive Ethernet ports; Audio Input 1-ch 3.5mm audio interface, LINE IN; Control Input/Output-1xRS-232 IN: 8pin Min DIN, Protocol: VISCA/Pelco-D/Pelco-P; 1xRS-485: 2pin phoenix port, Protocol: VISCA/Pelco-D/Pelco-P
Input Voltage12V DC (10.8 ~ 13.0V DC)
Current Consumption2.0A (Max)
Operating Temperature-5°C ~ 40°C
Storage Temperature-20°C ~ 60°C
