Video System 1080p/60, 1080p/50, 1080i/60, 1080i/50, 1080p/30, 1080p/25, 720p/60, 720p/50, 720p/30, 720p/25
Sensor 1/2.7'', CMOS, Effective Pixel: 2.07M
Scanning Mode Progressive
Lens 12x, f3.5mm ~ 42.3mm, F1.8 ~ F2.8
Digital Zoom 16x
Minimal Illumination 0.5 Lux @ (F1.8, AGC ON)
Shutter 1/30s ~ 1/10000s
White Balance Auto, 3000K/Indoor, 4000K, 5000K/Outdoor, 6500K_1, 6500K_2, 6500K_3, One Push, Manual
Backlight Compensation Support
Digital Noise Reduction 2D&3D Digital Noise Reduction
Video S/N ≥55dB
Horizontal Angle of View 72.5° ~ 6.9°
Vertical Angle of View 44.8° ~ 3.9°
Horizontal Rotation Range ±170°
Vertical Rotation Range -30° ~ +30°
Pan Speed Range 1.7° ~ 100°/s
Tilt Speed Range 0.7° ~ 28°/s
H & V Flip Support
Image Freeze Support
Number of Preset 255
Preset Accuracy 0.1°
Video Compression H.265/H.264/MJEPG
Video Stream Main/Sub Stream
Main Stream Resolution 1920x1080, 1280x720, 1024x576
Sub Stream Resolution 720x576, 720x480, 320x240
Video Bit Rate 128Kbps ~ 8192Kbps
Bit Rate Type Variable Rate, Fixed Rate
Frame Rate 50Hz: 1fps ~ 50fps, 60Hz: 1fps ~ 60fps
Audio Compression AAC
Audio Bit Rate 96Kbps, 128Kbps, 256Kbps
Support protocols TCP/IP, HTTP, RTSP, RTMP, Onvif, DHCP, Multicast, etc.
HD Interface 1xHDMI: Version 1.3
Network Interface 1xRJ45: 10M/100M Ethernet Interface
Audio Interface 1-ch: 3.5mm Audio Interface, Line In
Communication Interface 1xRS232 In: 8pin Min DIN, Protocol: VISCA/Pelco-D/Pelco-P
Power Jack JEITA type (DC IN 12V)

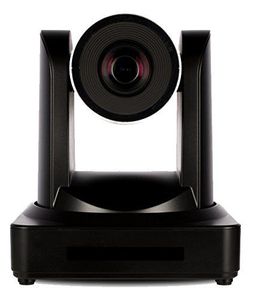

SMTAV SMT-HD36 HDMI High Definition 1080p 12x PTZ Camera,Support TCP/IP, HTTP, RTSP, RTMP, Onvif, DHCP, Multicast, etc protocols
Video System 1080p/60, 1080p/50, 1080i/60, 1080i/50, 1080p/30, 1080p/25, 720p/60, 720p/50, 720p/30, 720p/25
Sensor 1/2.7'', CMOS, Effective Pixel: 2.07M
Scanning Mode Progressive
Lens 12x, f3.5mm ~ 42.3mm, F1.8 ~ F2.8
Digital Zoom 16x
Minimal Illumination 0.5 Lux @ (F1.8, AGC ON)
Shutter 1/30s ~ 1/10000s
White Balance Auto, 3000K/Indoor, 4000K, 5000K/Outdoor, 6500K_1, 6500K_2, 6500K_3, One Push, Manual
Backlight Compensation Support
Digital Noise Reduction 2D&3D Digital Noise Reduction
Video S/N ≥55dB
Horizontal Angle of View 72.5° ~ 6.9°
Vertical Angle of View 44.8° ~ 3.9°
Horizontal Rotation Range ±170°
Vertical Rotation Range -30° ~ +30°
Pan Speed Range 1.7° ~ 100°/s
Tilt Speed Range 0.7° ~ 28°/s
H & V Flip Support
Image Freeze Support
Number of Preset 255
Preset Accuracy 0.1°
Video Compression H.265/H.264/MJEPG
Video Stream Main/Sub Stream
Main Stream Resolution 1920x1080, 1280x720, 1024x576
Sub Stream Resolution 720x576, 720x480, 320x240
Video Bit Rate 128Kbps ~ 8192Kbps
Bit Rate Type Variable Rate, Fixed Rate
Frame Rate 50Hz: 1fps ~ 50fps, 60Hz: 1fps ~ 60fps
Audio Compression AAC
Audio Bit Rate 96Kbps, 128Kbps, 256Kbps
Support protocols TCP/IP, HTTP, RTSP, RTMP, Onvif, DHCP, Multicast, etc.
HD Interface 1xHDMI: Version 1.3
Network Interface 1xRJ45: 10M/100M Ethernet Interface
Audio Interface 1-ch: 3.5mm Audio Interface, Line In
Communication Interface 1xRS232 In: 8pin Min DIN, Protocol: VISCA/Pelco-D/Pelco-P
Power Jack JEITA type (DC IN 12V)
