Video System 1080p/60, 1080p/50, 1080i/60, 1080i/50, 1080p/30, 1080p/25, 720p/60, 720p/50, 720p/30, 720p/25
Sensor 1/2.7'', CMOS, Effective Pixel: 2.07M
Scanning Mode Progressive
Lens 20x, f3.5mm ~ 42.3mm, F1.8 ~ F2.8
Digital Zoom 16x
Minimal Illumination 0.5 Lux @ (F1.8, AGC ON)
Shutter 1/30s ~ 1/10000s
White Balance Auto, 3000K/Indoor, 4000K, 5000K/Outdoor, 6500K_1, 6500K_2, 6500K_3, One Push, Manual
Backlight Compensation Support
Digital Noise Reduction 2D&3D Digital Noise Reduction
Video S/N ≥55dB
Horizontal Angle of View 72.5° ~ 6.9°
Vertical Angle of View 44.8° ~ 3.9°
Horizontal Rotation Range ±170°
Vertical Rotation Range -30° ~ +30°
Pan Speed Range 1.7° ~ 100°/s
Tilt Speed Range 0.7° ~ 28°/s
H & V Flip Support
Image Freeze Support
Number of Preset 255
Preset Accuracy 0.1°
HD Interface 1xHDMI: Version 1.3
Network Interface 1xRJ45: 10M/100M Ethernet Interface
Audio Interface 1-ch: 3.5mm Audio Interface, Line In
Communication Interface 1xRS232 In: 8pin Min DIN, Max Distance: 30m, Protocol: VISCA/Pelco-D/Pelco-P
Power Jack JEITA type (DC IN 12V)
Input Voltage DC 12V
Current Consumption 1.0A (Max)
Operating Temperature -10°C ~ 40°C (14°F ~ 104°F)
Storage Temperature -40°C ~ 60°C (-40°F ~ 140°F)
Power Consumption 12W (Max)
MTBF >30000h
Size 128.5mm x 118.0mm x 156.2mm
Net Weight 0.9 Kg

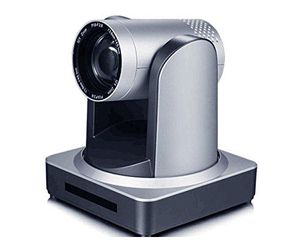

SMTAV SMT-HD38 HDMI High Definition 1080p 20x PTZ Camera,Support TCP/IP, HTTP, RTSP, RTMP, Onvif, DHCP, Multicast, etc protocols
Video System 1080p/60, 1080p/50, 1080i/60, 1080i/50, 1080p/30, 1080p/25, 720p/60, 720p/50, 720p/30, 720p/25
Sensor 1/2.7'', CMOS, Effective Pixel: 2.07M
Scanning Mode Progressive
Lens 20x, f3.5mm ~ 42.3mm, F1.8 ~ F2.8
Digital Zoom 16x
Minimal Illumination 0.5 Lux @ (F1.8, AGC ON)
Shutter 1/30s ~ 1/10000s
White Balance Auto, 3000K/Indoor, 4000K, 5000K/Outdoor, 6500K_1, 6500K_2, 6500K_3, One Push, Manual
Backlight Compensation Support
Digital Noise Reduction 2D&3D Digital Noise Reduction
Video S/N ≥55dB
Horizontal Angle of View 72.5° ~ 6.9°
Vertical Angle of View 44.8° ~ 3.9°
Horizontal Rotation Range ±170°
Vertical Rotation Range -30° ~ +30°
Pan Speed Range 1.7° ~ 100°/s
Tilt Speed Range 0.7° ~ 28°/s
H & V Flip Support
Image Freeze Support
Number of Preset 255
Preset Accuracy 0.1°
HD Interface 1xHDMI: Version 1.3
Network Interface 1xRJ45: 10M/100M Ethernet Interface
Audio Interface 1-ch: 3.5mm Audio Interface, Line In
Communication Interface 1xRS232 In: 8pin Min DIN, Max Distance: 30m, Protocol: VISCA/Pelco-D/Pelco-P
Power Jack JEITA type (DC IN 12V)
Input Voltage DC 12V
Current Consumption 1.0A (Max)
Operating Temperature -10°C ~ 40°C (14°F ~ 104°F)
Storage Temperature -40°C ~ 60°C (-40°F ~ 140°F)
Power Consumption 12W (Max)
MTBF >30000h
Size 128.5mm x 118.0mm x 156.2mm
Net Weight 0.9 Kg
