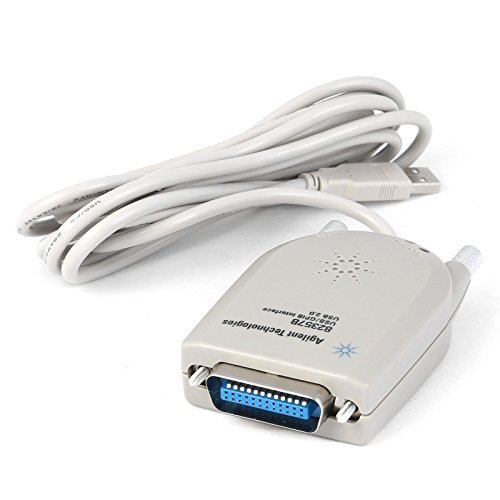

SMTHouse USB to GPIB Adapter USB GPIB Interface Controller High Speed USB 2.0 82357B

Welcome to the Agilent E5810B LAN/GPIB/USB Gateway quick start video In this short video, I will demonstrate how to quick start the instrument The E5810B provides a remote access and control of GPIB, USB and RS-232 instruments via LAN in a one-box solution It provides faster GPIB transfer rate up to 1.2MB/s and supports up to 1GB LAN connection. It has a password protected web interface for configuration The E5810B also comes with a built in LCD and web browser for easy set up and use with a power on/off switch for hard reset. First, let me go through with you the E5810B It's front panel consist of a built in LCD display which will display the IP address of the controller These are the LED indicators, this is the preset button and this is the power on/off switch As for the back panel, the E5810b model consists of the DC power port, the LAN port , the USB port which can be connected to
