Description
Specifications:
Display: 0.56in 4-digit LED
Display color: Blue / Green / Red (Optional)
Rotation speed range: 5-9999RPM
Frequency range: 0-98990.1Hz
Rate setting range: 1-99 (default: 01)
Reset time: 10 seconds
Refresh time: 120-1200RPM: 0.2~0.5s; 2400-9999RPM: 0.25~0.6s
Accuracy:
5000RPM: Approx. 2RPM
5000RPM: Approx. 3RPM
Input signal: voltage pulse signal, active contact signal, PNP, NPN
Power: DC 8-15V
Installation: Embedded
Wiring: + 12V: DC 8-15V input positive
GDN: DC power supply negative
IN +: signal input
Panel size: Approx. 72 * 36 * 20mm / 2.83 * 1.42 * 0.8in
Package List:

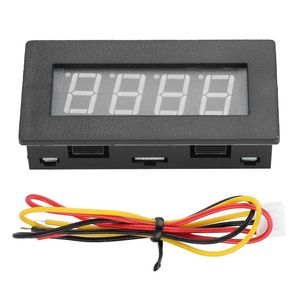

1 * Digital Frequency Tachometer
1 * Connector Cable
Tachometer setting instructions:
1. Rate range: 1-99 (default value 01: display value is the same as actual value; if rate is 10, display value * 10 = actual value);
2. When powering up, the meter displays "0";
3. Press the "SET" button to display "1"; press again to display "01"
4. When "1" is displayed, measure RPM; press "ADD", from "1" to "2", when "2" is displayed, measure the frequency; display "01" for rate setting, short press "ADD" for + 1, long press indicates +10;
5. After setting the value, if there is no operation within 10s, store it and return to the selected function interface;
6. 1 digital after the decimal point, that is, when the speed is <1000RPM, the rotation speed is corrected to the first digit after the decimal point; > 1000RPM without the decimal point.
Note:
The user can set the appropriate rate to measure frequencies less than 100 kHz (999.9 * 99 = 98990.1 Hz).
