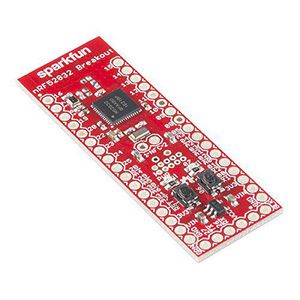

SparkFun (PID 13990) nRF52832 Breakout multiprotocol radio SoC

if you've been waiting to play with Bluetooth Low Energy and haven't quite found the right platform nordic semiconductors NRF 52 832 is packed full of features on one little chip and we've put it on a board for you additionally we've managed to squeeze in the arduino bootloader so you can actually program this with the arduino ide the NRF 52 832 is a complete system on a chip module it has a 32-bit ARM Cortex m4f running at 64 megahertz with 512 kilobytes of flash memory and 64 kilobytes of RAM on board is also a 2.4 gigahertz transceiver that can be used for Bluetooth Low Energy and and Nordics proprietary low-power protocol additionally it has support for NFC a tag to demonstrate ble I slightly modified one of the examples found on the NRF 5280 32 breakout boards hook up guide to toggle this power switch tail in addition to the onboard led I then use Intel's XDK to make a quick smartp
