SparkFun (PID 14874 Configurable OpAmp Board - TSH82

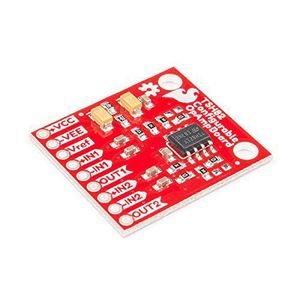

hi I'm Pete and this is the new TSH 8 - configurable op-amp board it will give you two inverting gain stages of 4.87 at a bandwidth of almost eight-and-a-half megahertz and it is just the thing for your next small cycle project at the heart of the board is the TSH 8 - wideband rail-to-rail dual op-amp which boasts a 100 megahertz bandwidth dual or bipolar supply and is able to source up to fifty five milliamps per stage the board itself is designed to take advantage of the op amps capabilities while still giving the user a flexible and highly configurable platform to work with each stage of the op-amp is natively configured for inverting operation with a gain of minus four point seven AC coupled inputs and DC coupled output but with the use of some solder jumpers on the back of the board you can get non-inverting and differential functionality as well as DC input coupling without changi
