For more details check out www.spinelelectronics.com. For questions, technical support and custom orders, please email us at info@spinelelectronics.com or call 1-800-837-5859.
Image Sensor: 1/4'' CMOS NT99141
Pixel Size: 3μm x 3μm
Resolution: 0.3 MP 1280(H) X 720(V)
Shutter Type: Electronic rolling shutter
Focus: Manually adjustable
Focusing Range: 20mm to Infinity
Protocol & Connection: Plug-&-Play (UVC compliant)
Max Frame Rate:
320X240 QVGA MJPEG @30fps, 352X288 MJPEG @ 30fps , 640X480 VGA MJPEG @30fps, 800X600 SVGA MJPEG @30fps, 1280X720 HD MJPEG @60fps
320X240 QVGA YUV2 @30fps, 352X288 YUV2@ 30fps , 640X480 VGA YUV2 @20fps, 800X600 SVGA YUV2 @30fps, 1280X720 HD YUV2 @10fps
Minimum Illumination: 0.05Lux
Built-in microphone: supported
Lens: Default 95 degree FOV non-distortion lens with IR-cut filter @ 650nm . For other Custom options, please contact us: 2.1mm, 3.6mm, 6mm, 8mm, 12mm, 16mm, Pin-hole 2.8mm, 3.7mm, 4.3mm lens, 185 Degree Fisheye, CS lens and others upon request
Night vision: No IR night vision, if needed, please contact us for a different IR lens and IR LED's can be soldered on board.
Controllable Features: Brightness, Contrast, Saturation, Hue, Sharpness, Gamma, White balance, Backlight Contrast, Exposure.
Power Socket: 4P PH 2.0mm socket, USB BUS Power.
Cable Length: Default 4ft (1.2M) (optional 2M or others upon request).
Supported OS: Win XP/Vista/Win7/Win8/Win10, Linux with UVC (linux-2.6.26 or later), MAC-OS X 10.4.8 or later, Wince with UVC, Android 4.0 or higher with UVC.
Power Consumption: DC5V (±5%), 140mA.
Operating Temp.: -4°F~167°F (-20°C~+75°C).
Storage Temp.: -40°F~185°F (-40°C~+125°C)
Humidity: Less than 80%
Dimension: 38mmx 38mm (Mount compatible with 32 x 32mm)
Weight: 12g (0.4OZ)

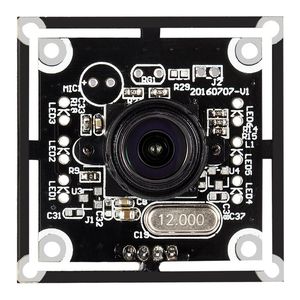

Spinel 720P USB Camera Module with Non-distortion Lens FOV 95 degree, Support 1280X720@30fps, UVC Compliant, Support most OS, Focus Adjustable, UC10MPA_ND
For more details check out www.spinelelectronics.com. For questions, technical support and custom orders, please email us at info@spinelelectronics.com or call 1-800-837-5859.
Image Sensor: 1/4'' CMOS NT99141
Pixel Size: 3μm x 3μm
Resolution: 0.3 MP 1280(H) X 720(V)
Shutter Type: Electronic rolling shutter
Focus: Manually adjustable
Focusing Range: 20mm to Infinity
Protocol & Connection: Plug-&-Play (UVC compliant)
Max Frame Rate:
320X240 QVGA MJPEG @30fps, 352X288 MJPEG @ 30fps , 640X480 VGA MJPEG @30fps, 800X600 SVGA MJPEG @30fps, 1280X720 HD MJPEG @60fps
320X240 QVGA YUV2 @30fps, 352X288 YUV2@ 30fps , 640X480 VGA YUV2 @20fps, 800X600 SVGA YUV2 @30fps, 1280X720 HD YUV2 @10fps
Minimum Illumination: 0.05Lux
Built-in microphone: supported
Lens: Default 95 degree FOV non-distortion lens with IR-cut filter @ 650nm . For other Custom options, please contact us: 2.1mm, 3.6mm, 6mm, 8mm, 12mm, 16mm, Pin-hole 2.8mm, 3.7mm, 4.3mm lens, 185 Degree Fisheye, CS lens and others upon request
Night vision: No IR night vision, if needed, please contact us for a different IR lens and IR LED's can be soldered on board.
Controllable Features: Brightness, Contrast, Saturation, Hue, Sharpness, Gamma, White balance, Backlight Contrast, Exposure.
Power Socket: 4P PH 2.0mm socket, USB BUS Power.
Cable Length: Default 4ft (1.2M) (optional 2M or others upon request).
Supported OS: Win XP/Vista/Win7/Win8/Win10, Linux with UVC (linux-2.6.26 or later), MAC-OS X 10.4.8 or later, Wince with UVC, Android 4.0 or higher with UVC.
Power Consumption: DC5V (±5%), 140mA.
Operating Temp.: -4°F~167°F (-20°C~+75°C).
Storage Temp.: -40°F~185°F (-40°C~+125°C)
Humidity: Less than 80%
Dimension: 38mmx 38mm (Mount compatible with 32 x 32mm)
Weight: 12g (0.4OZ)
