Image Sensor: 1/4'' CMOS OV2732
Pixel Size: 2μm x 2μm
Resolution: 2 MP FULL HD 1920(H) X 1080(V)
Shutter Type: Electronic rolling shutter
Focus: Manually adjustable
Focusing Range: 20mm to Infinity
Protocol & Connection: Plug-&-Play (UVC compliant)
Frame Rate:
320X240 QVGA MJPEG @ 60fps
640X360 MJPEG @ 60fps
640X480 VGA MJPEG @ 60fps
1280X720 HD MJPEG @ 60fps
1920X1080 FHD MJPEG @ 60fps
Minimum Illumination: 0.5Lux

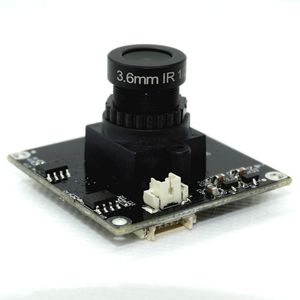

Lens: Default 3.6mm lens for 60 degree FOV . For other Custom options, please contact us: 1.7mm, 2.0mm, 2.8mm, 6mm, 8mm, 12mm, 16mm, Pin-hole 2.8mm, 3.7mm, 4.3mm lens, 185 Degree Fisheye and others upon request
Night vision: No IR night vision, if needed, please contact us for a different IR lens and IR illumination options.
Controllable Features: Brightness, Contrast, Saturation, Hue, Sharpness, Gamma, White balance, Backlight Contrast, Exposure.
Power Socket: 4P PH 1.25mm socket, USB BUS Power.
Cable Length: Default 4ft (1.2M) (optional 2M or others upon request).
Supported OS: Win XP/Vista/Win7/Win8/Win10, Linux with UVC (linux-2.6.26 or later), MAC-OS X 10.4.8 or later, Wince with UVC, Android 4.0 or higher with UVC.
Power Consumption: DC5V (±5%), 150~200mA.
Operating Temp.: -4°F~167°F (-20°C~+75°C).
Storage Temp.: -40°F~185°F (-40°C~+125°C)
Dimension: 38mmx 38mm
Weight: 12g (0.4OZ)
