Description
For more details check out www.jpegcamera.com. For questions, technical support and custom orders, please email us at info@jpegcamera.com or call 1-800-837-5859.
Image Sensor: CMOS MT9V011
Pixels: 300K Pixels
Image Resolution: 640 x480 (VGA), 320 x 240 (QVGA) (Default), 160×120
Image Compression: JPEG
Serial Interface output: RS232
Baud Rate: 38400bps (Default), 9600bps, 57600bps, and 115200bps
Focal Length: 3.6mm (Default) (custom options: 1.7mm/2.0mm/2.8mm/6.0mm/8.0mm/12mm/16mm)
Angle of View (FOV): 90° (Default) (custom order options: 170°/150°/120°/60°/45°/30°/15°)
Power Supply: DC 5V/3.3V (Default), custom option 12V DC
Current consumption: Typical: 80mA, Max: 100mA (when IR LED's are on).
Cable Length: 20CM (Default).
Infrared LED's: 6 built-in infrared 850nm LED's.
Night image: black and white.
Night vision range: 10 meters (33ft).
IR-Cut filter: Default with no IR-CUT filter, custom with Built-in filter.(available for custom orders).
White Balance: Automatic
Exposure: Automatic
Auto Gain Control: Automatic
Operating Temperature: -4℉-140℉
Storage Temperature: -22℉-158℉
Protocol: compatible with VC0706
Dimension: 45.6 x 30 x 28mm
Weight: 12g (0.4 OZ)
Connector: Default with bared 4 pin wires

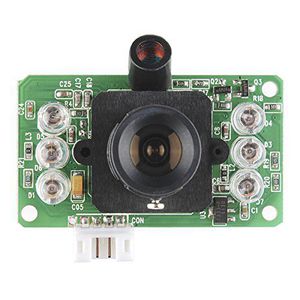

Spinel Infrared 0.3MP Serial JPEG Color Camera Module RS232 Output, VC0706 Protoccol, Arduino Compitable, P/N: SC03MPC, offer custom solutions
Price is below average
Current Price
$40
Average
$41
Min Price
$35
Max Price
$45
Price dynamics
2%
Description
For more details check out www.jpegcamera.com. For questions, technical support and custom orders, please email us at info@jpegcamera.com or call 1-800-837-5859.
Image Sensor: CMOS MT9V011
Pixels: 300K Pixels
Image Resolution: 640 x480 (VGA), 320 x 240 (QVGA) (Default), 160×120
Image Compression: JPEG
Serial Interface output: RS232
Baud Rate: 38400bps (Default), 9600bps, 57600bps, and 115200bps
Focal Length: 3.6mm (Default) (custom options: 1.7mm/2.0mm/2.8mm/6.0mm/8.0mm/12mm/16mm)
Angle of View (FOV): 90° (Default) (custom order options: 170°/150°/120°/60°/45°/30°/15°)
Power Supply: DC 5V/3.3V (Default), custom option 12V DC
Current consumption: Typical: 80mA, Max: 100mA (when IR LED's are on).
Cable Length: 20CM (Default).
Infrared LED's: 6 built-in infrared 850nm LED's.
Night image: black and white.
Night vision range: 10 meters (33ft).
IR-Cut filter: Default with no IR-CUT filter, custom with Built-in filter.(available for custom orders).
White Balance: Automatic
Exposure: Automatic
Auto Gain Control: Automatic
Operating Temperature: -4℉-140℉
Storage Temperature: -22℉-158℉
Protocol: compatible with VC0706
Dimension: 45.6 x 30 x 28mm
Weight: 12g (0.4 OZ)
Connector: Default with bared 4 pin wires
Price will be lower
in next 2 weeks
in next 2 weeks
According to the data, price will be lower in next two weeks, so not waste your money and track better price!
