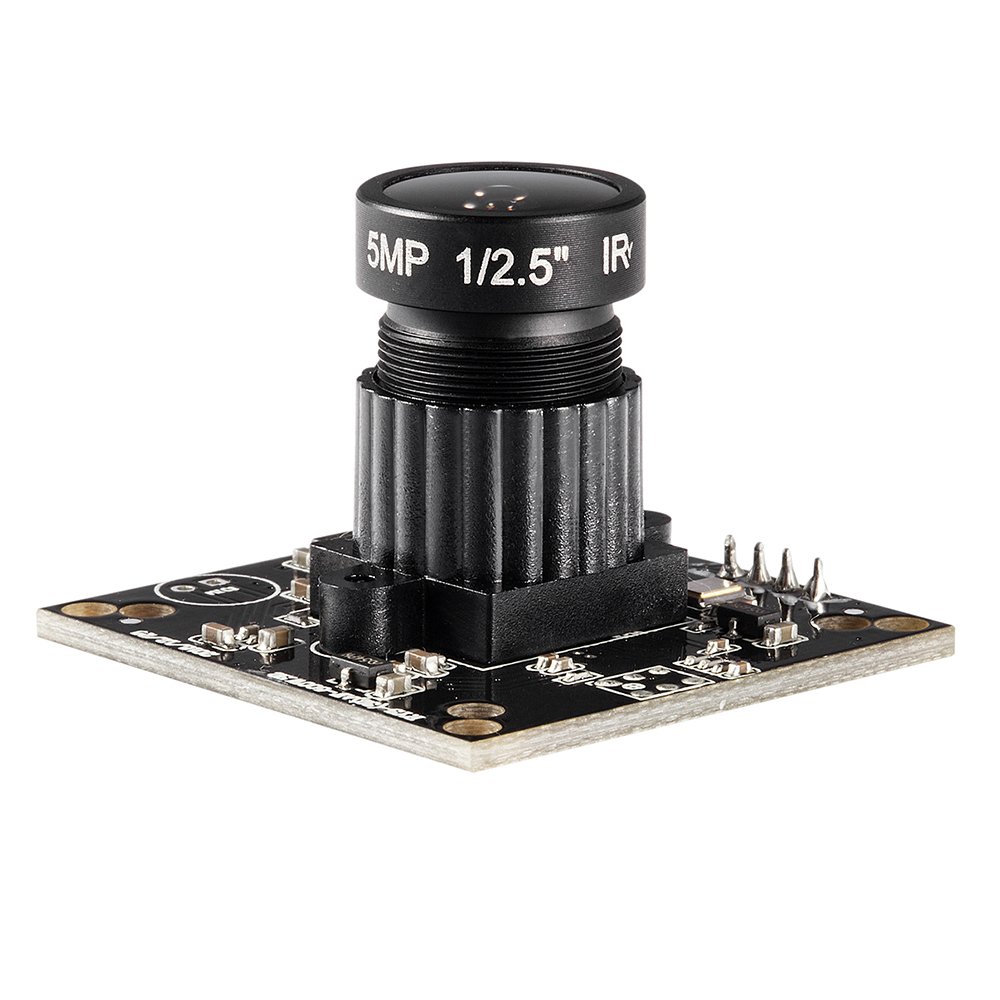

Image Sensor: 1/4'' CMOS
Pixel Size: 1.4μm x 1.4μm
Resolution: 5 MP 2592(H) X 1944(V)
Shutter Type: Electronic rolling shutter
Focus: Manually adjustable
Focusing Range: 20mm to Infinity
Protocol & Connection: Plug-&-Play (UVC compliant)
Frame Rate:
320X240 MJPEG @15fps, 640X480 MJPEG @15fps, 1280X960 MJPEG @30fps, 1600x1200 MJPEG @15fps, 1920x1080 MJPEG @30fps 2048x1536 MJPEG @15fps, 2592x1944 MJPEG @15fps.
320X240 YUV2 @30fps, 640X480 YUV2 @30fps, 1280X960 YUV2@5fps, 1600x1200 YUV2 @5fps, 1920x1080 YUV2 @5fps 2048x1536 YUV2 @3fps, 2592x1944 MJPEG @2fps.
Minimum Illumination: 0.1Lux
Lens: 3.6mm Lens with 650nm IR filter for FOV 60 degree.
Night vision: No IR night vision, if needed, please contact us for a different IR lens and IR illumination options.
Controllable Features: Brightness, Contrast, Saturation, Hue, Sharpness, Gamma, White balance, Backlight Contrast, Exposure.
Power Socket: 4P PH 2.0mm socket, USB BUS Power.
Cable Length: Default 4ft (1.2M) (optional 2M or others upon request).
Supported OS: Win XP/Vista/Win7/Win8/Win10, Linux with UVC (linux-2.6.26 or later), MAC-OS X 10.4.8 or later, Wince with UVC, Android 4.0 or higher with UVC.
Power Consumption: DC5V (±5%), 150~200mA.
Operating Temp.: -4°F~167°F (-20°C~+75°C).
Storage Temp.: -40°F~185°F (-40°C~+125°C)
Humidity: Less than 80%
Dimension: 32mmx 32mm
Weight: 12g (0.4OZ)
