Description
For more details check out www.jpegcamera.com. For questions, technical support and custom orders, please email us at info@jpegcamera.com or call 1-800-837-5859.
Image Sensor: CMOS MT9V011
Pixels: 300K Pixels
Image Resolution: 640 x480 (VGA), 320 x 240 (QVGA) (Default), 160×120
Image Compression: JPEG
Video: NSTC default, custom option PAL per request
Serial Interface output: TTL
Baud Rate: 38400bps, 9600bps, 57600bps, and 115200bps (Default)
Focal Length: 4.3mm (Default, only option)
Angle of View (FOV): 70° (Default, only option)
Power Supply: DC 5V/3.3V (Default)
Current consumption: Typical: 75mA
Cable Length: 20CM (Default).
Infrared LED's: Not available.
Night image: black and white.
Night vision range: 5 meters (16ft).
IR-Cut filter: Not available.
White Balance: Automatic
Exposure: Automatic
Auto Gain Control: Automatic
Operating Temperature: -4℉-140℉
Storage Temperature: -22℉-158℉
Protocol: VC0706
Dimension: 28 x 20 x 28mm
Weight: 3g (0.1 OZ)
Connector: Default with bared 5 pin wires

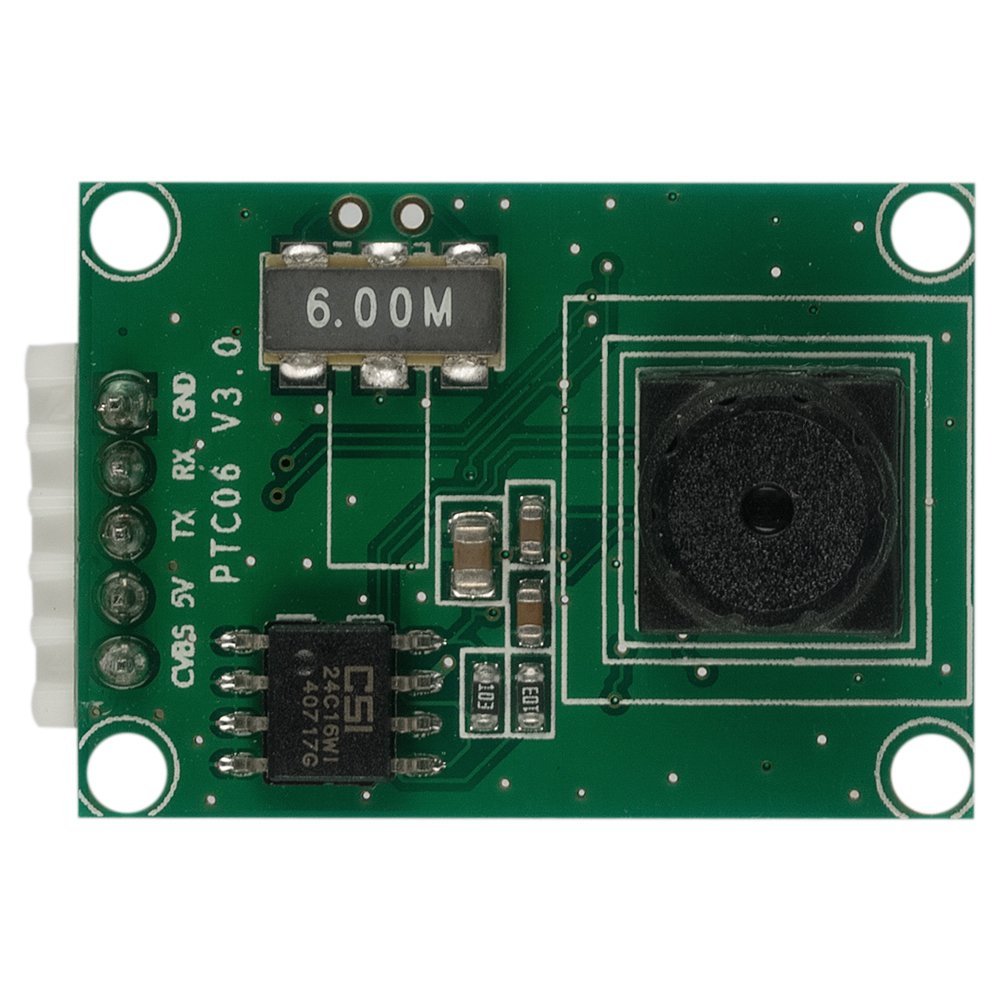

Spinel Miniature Serial JPEG Camera Module TTL/UART with NTSC Video, Arduino Compatible, P/N:SC03MPE, Equal to Adafruit 1386 Camera
Current Price
$32
Average
$31.83
Min Price
$29.99
Max Price
$35
Price dynamics
1%
Description
For more details check out www.jpegcamera.com. For questions, technical support and custom orders, please email us at info@jpegcamera.com or call 1-800-837-5859.
Image Sensor: CMOS MT9V011
Pixels: 300K Pixels
Image Resolution: 640 x480 (VGA), 320 x 240 (QVGA) (Default), 160×120
Image Compression: JPEG
Video: NSTC default, custom option PAL per request
Serial Interface output: TTL
Baud Rate: 38400bps, 9600bps, 57600bps, and 115200bps (Default)
Focal Length: 4.3mm (Default, only option)
Angle of View (FOV): 70° (Default, only option)
Power Supply: DC 5V/3.3V (Default)
Current consumption: Typical: 75mA
Cable Length: 20CM (Default).
Infrared LED's: Not available.
Night image: black and white.
Night vision range: 5 meters (16ft).
IR-Cut filter: Not available.
White Balance: Automatic
Exposure: Automatic
Auto Gain Control: Automatic
Operating Temperature: -4℉-140℉
Storage Temperature: -22℉-158℉
Protocol: VC0706
Dimension: 28 x 20 x 28mm
Weight: 3g (0.1 OZ)
Connector: Default with bared 5 pin wires
