For more details check out www.spinelelectronics.com. For questions, technical support and custom orders, please email us at info@spinelelectronics.com or call 1-800-837-5859.
Image Sensor: 1/4'' CMOS OV7725
Pixel Size: 6μm x 6μm
Resolution: 0.3 MP 640(H) X 480(V)
Shutter Type: Electronic rolling shutter
Focus: Manually adjustable
Focusing Range: 20mm to Infinity
Protocol & Connection: Plug-&-Play (UVC compliant)
Frame Rate:
640X480 VGA MJPEG @60fps
Minimum Illumination: 0.02Lux
Lens: 90 degree FOV 3.6MM lens with IR-cut filter @ 650nm .
Night vision: No IR night vision, if needed, please contact us for a different IR lens and IR LED's can be soldered on board.
Controllable Features: Brightness, Contrast, Saturation, Hue, Sharpness, Gamma, White balance, Backlight Contrast, Exposure.
Power Socket: 4P PH 2.0mm socket, USB BUS Power.
Cable Length: Default 4ft (1.2M) (optional 2M or others upon request).
Supported OS: Win XP/Vista/Win7/Win8/Win10, Linux with UVC (linux-2.6.26 or later), MAC-OS X 10.4.8 or later, Wince with UVC, Android 4.0 or higher with UVC.
Power Consumption: DC5V (±5%), 140mA.
Operating Temp.: -4°F~167°F (-20°C~+75°C).
Storage Temp.: -40°F~185°F (-40°C~+125°C)
Humidity: Less than 80%
Dimension: 27mmx 27mm
Weight: 9g (0.3OZ)

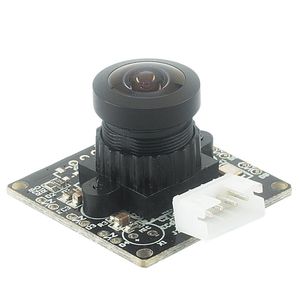

Spinel VGA USB Camera Module OV7725 with 3.6mm Lens 90 degree, Support MJPEG 640x480@60fps, UVC Compliant, Support most OS, Focus Adjustable, UC03MPA_L36
For more details check out www.spinelelectronics.com. For questions, technical support and custom orders, please email us at info@spinelelectronics.com or call 1-800-837-5859.
Image Sensor: 1/4'' CMOS OV7725
Pixel Size: 6μm x 6μm
Resolution: 0.3 MP 640(H) X 480(V)
Shutter Type: Electronic rolling shutter
Focus: Manually adjustable
Focusing Range: 20mm to Infinity
Protocol & Connection: Plug-&-Play (UVC compliant)
Frame Rate:
640X480 VGA MJPEG @60fps
Minimum Illumination: 0.02Lux
Lens: 90 degree FOV 3.6MM lens with IR-cut filter @ 650nm .
Night vision: No IR night vision, if needed, please contact us for a different IR lens and IR LED's can be soldered on board.
Controllable Features: Brightness, Contrast, Saturation, Hue, Sharpness, Gamma, White balance, Backlight Contrast, Exposure.
Power Socket: 4P PH 2.0mm socket, USB BUS Power.
Cable Length: Default 4ft (1.2M) (optional 2M or others upon request).
Supported OS: Win XP/Vista/Win7/Win8/Win10, Linux with UVC (linux-2.6.26 or later), MAC-OS X 10.4.8 or later, Wince with UVC, Android 4.0 or higher with UVC.
Power Consumption: DC5V (±5%), 140mA.
Operating Temp.: -4°F~167°F (-20°C~+75°C).
Storage Temp.: -40°F~185°F (-40°C~+125°C)
Humidity: Less than 80%
Dimension: 27mmx 27mm
Weight: 9g (0.3OZ)
