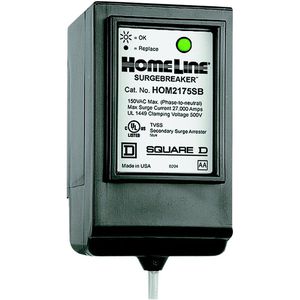

Square D by Schneider Electric HOM2175SB Homeline SurgeBreaker Surge Protective Device Takes 2 Load Center Spaces

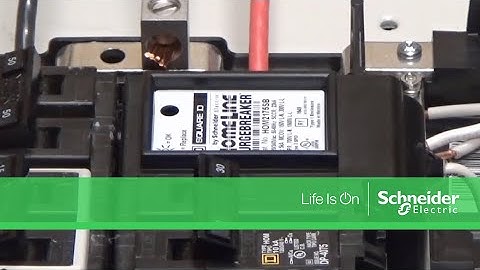

[Music] today we'll be doing an instructional video on how to install the h-11 2175 SB into a home nine little singer always follow the safety instructions that come with the device and never work on energized equipment so the h1 2175 SP will need to be installed in the top two positions you know the left burner on the right closes to the main load so the main break of the panel this advice will also need to make a neutral connection to the venture bar on either side the first thing we want to do is make the neutral connection it's an available spot on the neutral bar tighten down the wire bindings group now notice the hooks on the bottom side of the search breaker these will hook into the railing of the load Center on the side first put the breaker in bottom first seating it into the hooks then press firmly on the top of the breaker rocking it into the breaker slot once the home line s
