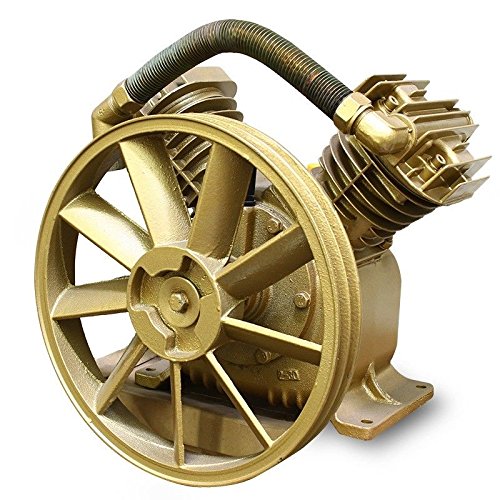

The replacement 145 PSI air compressor pump fits compressors from most manufacturers. The splash lubrication keeps the air compressor pump cool while a heavy duty cast iron steel construction withstands rigorous use on the job. Oil sight glass for easy maintenance.

Feature:

• Dependable 1-stage, splash-lubricated cast iron pump runs at slower RPM to prevent overheating, last longer, create less wear and tear, and save electricity
• Max air delivery of 17.5 CFM, two mufflers with two high efficiency intake filters and V-style cylinder design for superior cooling, reduces moisture and extends the life of the air compressor pump
• Industrial-class bearings ensure long operating life
• Aluminum head for strength and optimum heat dissipation
• Observing the oil viewing window, it can monitor the oil capacity inside the machine in real time, and control the amount of oil when you adding the air compressor oil
• The proven belt driven design is great for excellent compression & smooth running
• With the high exhaust efficiency, low noise, smooth operation and less fuel consumption, it’s the best choice for you

Specifications:

• Pump Type: 1-Stage
• Horsepower: 5-5.5
• Max PSI: 145
• Flow Rate: 17.5 CFM @ 40 PSI & 15.2 SCFM @ 90 PSI
• Flywheel: 14-1/2'' with dual V-groove (A-1600belt)
• Oil Sight Glass: Yes
• Pump Drive: Belt Drive
• Oil Type: Oil Lubricated

Package Content:

• Twin Cylinder Air Compressor Pump
