Description
"Features:
New design 2.4G &5.8G dual band 2000mW wifi signal booster, Auto switch frequency,5-16V wide voltage range,support different power supply;Aluminum-alloy case by CNC, anti-interference; Designed for Drones, UAV, RC equipment....
Technical Specifications:
Booster Model: SH-RC5824G2W
Operating Range:2.4~2.5 GHz, 5.0~5.875 GHz
Operating Mode:Bi-directional, half-duplex, time division duplex senses RF, carrier from transmitter and automatically switch receiving to transmitting mode.
Connector Type:SMA Receptacle 50ohm,To radio SMA female(hole inside),To antenna RP-SMA female(pin inside)
Input Power:0~20 dBm
Transmit Gain:15-18dB
Output Power:2000mW (33dBm)
Receiver Gain:≤ 12 dB
Noise Figure:≤3.5 dB typical
Frequency Response:±1dB over operating range
Supported voltages: 5V~16V/2A DC
Operating Temperature:-20°C to + 70°C
Operating Humidity:Up to 75% relative humidity
Material:Cast Aluminum
Booster Weight: 77g
Booster Size:9.7 x 5.2 x x1.1cm

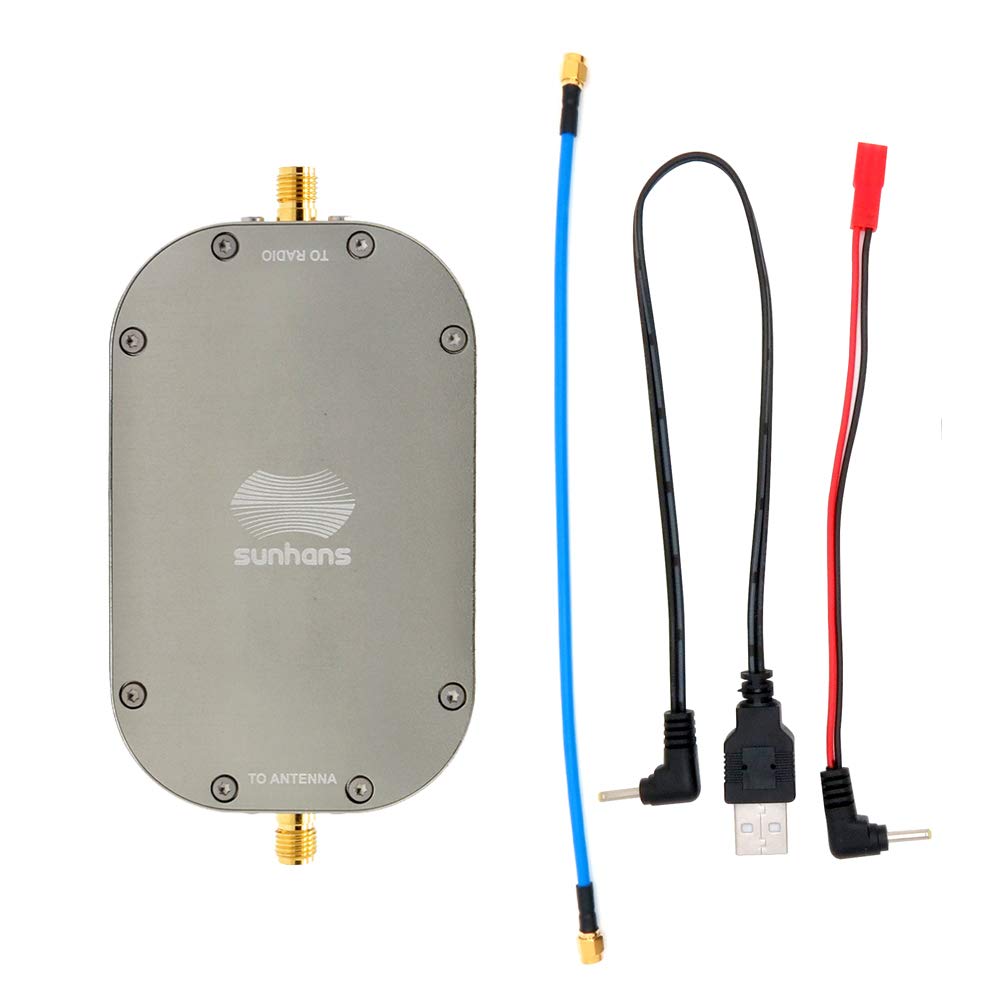

Package contents
1 x SH-RC5824G2W eSunRc WiFi booster
1 x DC 2.5" to USB adapter
1 x DC 2.5" to JST adapter
1 x Mounting Velcro
1 x User Manual
New design 2.4G &5.8G dual band 2000mW wifi signal booster, Auto switch frequency,5-16V wide voltage range,support different power supply;Aluminum-alloy case by CNC, anti-interference; Designed for Drones, UAV, RC equipment....
Technical Specifications:
Booster Model: SH-RC5824G2W
Operating Range:2.4~2.5 GHz, 5.0~5.875 GHz
Operating Mode:Bi-directional, half-duplex, time division duplex senses RF, carrier from transmitter and automatically switch receiving to transmitting mode.
Connector Type:SMA Receptacle 50ohm,To radio SMA female(hole inside),To antenna RP-SMA female(pin inside)
Input Power:0~20 dBm
Transmit Gain:15-18dB
Output Power:2000mW (33dBm)
Receiver Gain:≤ 12 dB
Noise Figure:≤3.5 dB typical
Frequency Response:±1dB over operating range
Supported voltages: 5V~16V/2A DC
Operating Temperature:-20°C to + 70°C
Operating Humidity:Up to 75% relative humidity
Material:Cast Aluminum
Booster Weight: 77g
Booster Size:9.7 x 5.2 x x1.1cm
Package contents
1 x SH-RC5824G2W eSunRc WiFi booster
1 x DC 2.5" to USB adapter
1 x DC 2.5" to JST adapter
1 x Mounting Velcro
1 x User Manual
