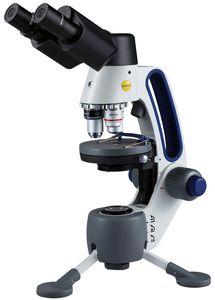

The Swift Optical M3-B cordless, compound microscope has a binocular head with a 45-degree inclination and 360-degree rotation, upper (incident) and lower (transmitted) LED lighting, two 10x widefield eyepieces with interpupillary adjustment have 4x, 10x, and 40xR microscopic DIN achromatic objective lenses, a 1x macroscopic DIN achromatic objective lens, and is designed for biological use and educational applications. The 0.65 numerical aperture (N.A.) condenser, DIN achromatic 1x, 4x (0.10 N.A.), 10x (0.25 N.A.), and 40xR (0.65 N.A.) lens objectives are mounted on a four-hole ball-bearing mounted turret, and coaxial coarse and fine focus knobs provide a range of magnification and focus options. The 97 mm (4 inch) round stage has a sealed iris diaphragm, one-touch stage clips, black and white stage disks, and rack-and-pinion adjustment mechanism. The stage height can be adjusted for both microscopic and macroscopic viewing, and can hold a specimen cup for viewing liquid or larger specimens. Upper and lower LED illumination provide incidental and transmitted light, and the iris diaphragm controls the amount of light projected on or through the specimen. The adjustable tripod base is designed for use on rough or uneven surfaces, and can be removed and retracted for storage. A tripod mount allows the microscope to be mounted on a standard camera tripod for use in the field. A built-in handle promotes safe handling. The cordless, field microscope has built-in rechargeable batteries and 110/220V switchable power supply with an American-style plug. A microprocessor prevents the battery from overcharging, extending battery life. Fully charged batteries operate up to 40 hours without recharging.
Specifications
| Total optical magnification | Up to 400x | ||
| Eyepiece | 10x widefield, 18mm outer diameter (OD) | ||
| Total optical magnification | Up to 400x |
| Eyepiece | 10x widefield, 18mm outer diameter (OD) |
