Description

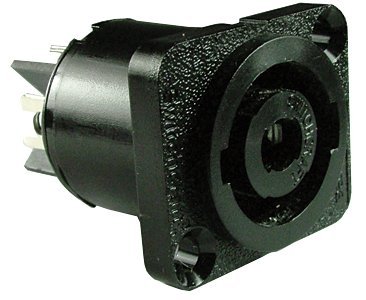

HPC Loudspeaker, panel-mount connector, 0.1" recessed flange, 0.140" dia. hole, Faston 0.250" termination.
Materials
Housings: Thermoplastic UL94V-O ratedSeal Rings: Thermoplastic rubber
Contacts: Silver-plated over copper alloy
Electrical
Current Rating: 30A per UL 1977Voltage Rating: 1,500 AC RMS, Per Mil-Std 202, Method 301
Insulation Resistance: > 2T Ohms
Contact Resistance: 1m Ohm, 1.5m Ohm after 1,000 insertions/withdrawals
Mechanical
Shock: Mil-Std 202, Method 213B Cond. KVibration: Mil-Std 202, Method 201A
Life: 1,000 insertion/withdrawals
Cable Range: 0.560" OD max.
Environmental
Salt Spray: Mil-Std 202, MSwitchcraft HPC Locking Panel Mount Receptacle, Equivalent To SpeakON (Type HPCP41F)
Current Price
$9.53
Average
$7.71
Min Price
$3.95
Max Price
$9.65
Price dynamics
19%
Description
HPC Loudspeaker, panel-mount connector, 0.1" recessed flange, 0.140" dia. hole, Faston 0.250" termination.
Materials
Housings: Thermoplastic UL94V-O ratedSeal Rings: Thermoplastic rubber
Contacts: Silver-plated over copper alloy
Electrical
Current Rating: 30A per UL 1977Voltage Rating: 1,500 AC RMS, Per Mil-Std 202, Method 301
Insulation Resistance: > 2T Ohms
Contact Resistance: 1m Ohm, 1.5m Ohm after 1,000 insertions/withdrawals
Mechanical
Shock: Mil-Std 202, Method 213B Cond. KVibration: Mil-Std 202, Method 201A
Life: 1,000 insertion/withdrawals
Cable Range: 0.560" OD max.
Environmental
Salt Spray: Mil-Std 202, MPrice will be lower
in next 2 weeks
in next 2 weeks
According to the data, price will be lower in next two weeks, so not waste your money and track better price!
