Description
Main functions:
Player function:
1.To be used as a lossless music play. SD card/USB(U flash disk or mobile hard disk) input, DP1 switch to the corresponding Input to play music, it can output anolog signal and digital optical signal.
2.Built-in headphone amplifier chip MAX97220A, add a 3.5mm earphone jack, can connect with headphone or earphone.
3.With anolog RCA pre output, adjustable high quality anolog signal. Can connect with amplifier, active speaker and headphone amplifier.
Digital Player function:
1.When playing SD card/ U flash disk/mobile hard disk, to match digital optical output, optical output can support up to 24bit/192kHz, it can be used as an DAC, connect with decoder.
Decoder function:
1. DP1 has 32bit decoding function with any of its input.
2. With optical input, can connect with CD/ set top box/TV and so on.
Specification
Output:Optical;RCA;3.5 MM analog headphones
Input:SD card (TF card + SD card sets);Optical;USB
Supported formats: WAV/FLAC/APE/WMA/MP3/AAC
Dynamic:109 db
THD+N:DAC out 0.0008%
Headphone amp 0.003%
Signal to noise ratio:DAC out 97dB
Headphone amp 88dB
Headphone output power:103mW@THD+N=0.1%,32Ω
The DAC output level:2Vrms
Power consumption:1.62 W
Standby power:0.09 W
Weight:450g
Size:120*120*36(mm)
Package:
Remote control
9V power adapter
Player function:
1.To be used as a lossless music play. SD card/USB(U flash disk or mobile hard disk) input, DP1 switch to the corresponding Input to play music, it can output anolog signal and digital optical signal.
2.Built-in headphone amplifier chip MAX97220A, add a 3.5mm earphone jack, can connect with headphone or earphone.
3.With anolog RCA pre output, adjustable high quality anolog signal. Can connect with amplifier, active speaker and headphone amplifier.
Digital Player function:
1.When playing SD card/ U flash disk/mobile hard disk, to match digital optical output, optical output can support up to 24bit/192kHz, it can be used as an DAC, connect with decoder.
Decoder function:
1. DP1 has 32bit decoding function with any of its input.
2. With optical input, can connect with CD/ set top box/TV and so on.
Specification
Output:Optical;RCA;3.5 MM analog headphones
Input:SD card (TF card + SD card sets);Optical;USB
Supported formats: WAV/FLAC/APE/WMA/MP3/AAC
Dynamic:109 db
THD+N:DAC out 0.0008%
Headphone amp 0.003%
Signal to noise ratio:DAC out 97dB
Headphone amp 88dB
Headphone output power:103mW@THD+N=0.1%,32Ω
The DAC output level:2Vrms
Power consumption:1.62 W
Standby power:0.09 W
Weight:450g
Size:120*120*36(mm)
Package:
Remote control
9V power adapter

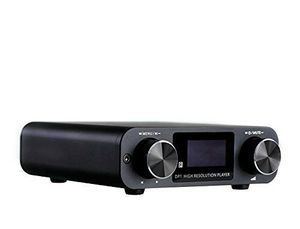

SMSL DP1 USB SD Card 32bit Headphone Amplifier + Decoder + High Resolution Digital Player
Current Price
$115.99
