Description

1. Connection method:
Brown wire: power supply -12 or 24V
Black line: negative power supply
White line: Gound
Blue line: signal output
Application range
.Level measurement
Adjacent area measuring

.Anthropometrics
.Robot ranging sensor
.Auto Navigation
.Multi-sensor navigation
.Distance measurement
.Industrial sensor
3. Output signal: 0-5V., NPN, PNP, RS485
4. Product characteristics:
.Direct detection mode; the distance signal is obtained by transmitting the time difference between the ultrasonic signal and the feedback signal, and converted into the required signal or voltage after processing by the high-speed chip.
Product model: LM-200-010-DAC (NPN, PNP)
Measuring range: 100 ~ 1000mm
Dead zone: 100mm
Standard detection board: 30x30cm
Sensor frequency: 200KHz
Working voltage: 12 or 24VDC
Output mode: 0-5V, NPN, PNP, RS485
Working temperature: 20C ~ + 60 ℃
Storage temperature: -40 ° C ~ + 80 ℃
Lead length: 2 meters (If you need to lengthen, you need to pay extra wire)
Housing material: ABS engineering plastic
Angle: 7 degrees (3.5 degrees up and down)
Measurement accuracy: millimeter level
The ultrasonic distance sensor uses the principle of ultrasonic echo ranging, uses accurate time difference measurement technology to detect the distance between the sensor and the target, and adopts the small angle and small blind area ultrasonic sensors developed by our factory, which have accurate measurement, no contact, and waterproof , Anti-corrosion, low cost and other advantages, can be applied to liquid level, material level detection, unique liquid level, material level detection method, can ensure that there is foam or large shaking on the liquid surface, it is not easy to detect echoes. Stable output.

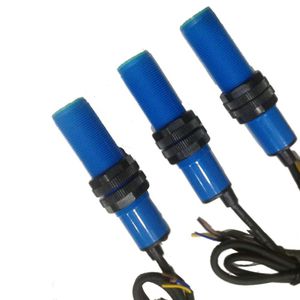

Taidacent 200KHZ Outer Diameter 18mm High Frequency Ultrasonic Transducer High Precision Ultrasonic Sensor Distance Measurement Waterproof Ultrasonic Distance Sensor

Current Price

$113.34

Average

$113.34

Min Price

$113.34

Max Price

$113.34

Description

1. Connection method:
Brown wire: power supply -12 or 24V
Black line: negative power supply
White line: Gound
Blue line: signal output
Application range
.Level measurement
Adjacent area measuring

.Anthropometrics
.Robot ranging sensor
.Auto Navigation
.Multi-sensor navigation
.Distance measurement
.Industrial sensor
3. Output signal: 0-5V., NPN, PNP, RS485
4. Product characteristics:
.Direct detection mode; the distance signal is obtained by transmitting the time difference between the ultrasonic signal and the feedback signal, and converted into the required signal or voltage after processing by the high-speed chip.
Product model: LM-200-010-DAC (NPN, PNP)
Measuring range: 100 ~ 1000mm
Dead zone: 100mm
Standard detection board: 30x30cm
Sensor frequency: 200KHz
Working voltage: 12 or 24VDC
Output mode: 0-5V, NPN, PNP, RS485
Working temperature: 20C ~ + 60 ℃
Storage temperature: -40 ° C ~ + 80 ℃
Lead length: 2 meters (If you need to lengthen, you need to pay extra wire)
Housing material: ABS engineering plastic
Angle: 7 degrees (3.5 degrees up and down)
Measurement accuracy: millimeter level
The ultrasonic distance sensor uses the principle of ultrasonic echo ranging, uses accurate time difference measurement technology to detect the distance between the sensor and the target, and adopts the small angle and small blind area ultrasonic sensors developed by our factory, which have accurate measurement, no contact, and waterproof , Anti-corrosion, low cost and other advantages, can be applied to liquid level, material level detection, unique liquid level, material level detection method, can ensure that there is foam or large shaking on the liquid surface, it is not easy to detect echoes. Stable output.

According to the data, price will be lower in next two weeks, so not waste your money and track better price!
