Description

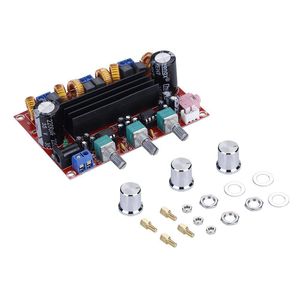

Product Name: 2.1 channel audio amplifier board
Specification model: XH-M139
Chip selection: TPA3116D2×2
Supply voltage: DC24V recommended (range 12-26V)
Output power: 80W × 2 100W × 1 (subwoofer)
Output load: 4-8Ohm
Frequency response range: 4-100KHz
Signal to noise ratio of 100 decibels
Number of channels: 3 (left + right + subwoofer)
Switching frequency: 1.2MHz
Product net weight: 136g
Appearance size: 100×70×30mm
Product Features
Dual component configuration
Strong dual core
Dual preamplifier
Array component configuration is perfect
The power amplifier board uses two original imported TPA311602 digital power amplifier chips, one of which is power amplification of the left and right channels, and the other is connected with the NE5532 front bridge to drive the subwoofer, which has the characteristics of small size, high efficiency, high power, etc.
Specification model: XH-M139
Chip selection: TPA3116D2×2
Supply voltage: DC24V recommended (range 12-26V)
Output power: 80W × 2 100W × 1 (subwoofer)
Output load: 4-8Ohm
Frequency response range: 4-100KHz
Signal to noise ratio of 100 decibels
Number of channels: 3 (left + right + subwoofer)
Switching frequency: 1.2MHz
Product net weight: 136g
Appearance size: 100×70×30mm
Product Features
Dual component configuration
Strong dual core
Dual preamplifier
Array component configuration is perfect
The power amplifier board uses two original imported TPA311602 digital power amplifier chips, one of which is power amplification of the left and right channels, and the other is connected with the NE5532 front bridge to drive the subwoofer, which has the characteristics of small size, high efficiency, high power, etc.
