Description
Input: AC 100-240V
Application: 16S Lithium Batteries
Output: 67.2V 1.5A
Charger Type: CC and CV
Battery Charger Case Material: ABS + PC
Size: 134 x 56 x 46mm
Operating Temperature: -20 to 60 Degree
Operating Humidity: 20 to 90%RH
Storage Temperature: -40 fo +80Degree
Protection
Over current protection
Over voltage protection
Short Circuit Protection
Reverse Connection Protection
Usage Introdction
Dual color LED indicator:(Charging:Red; Fully charged or no load:Green)
High efficiency and low power consumption
Package

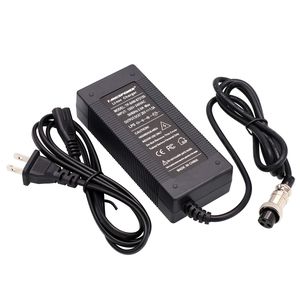

1pc 67.2V 1.5A Lithum Battery Charger
1pc cable
Tips: The charger connector size is 12MM
Use and maintenance of the charger :
1. When charging, first connector to the battery, then connect to AC; after full, cut off AC, then pull the battery plug.
If you pull the battery plug first while charging, especially when the charging current is large (red light), it is very easy to damage the charger.
2. When the LED light turns green, please continue charging for 2-3 hours.
3. Please do not run out of battery power, then charger. Otherwise the battery cannot be protected or even damaged.
4. long-term shallow discharge battery, about 3 months, for a deep discharge, is the so-called re-lighting, which is conducive
to the activation of long-term immobile material in the deep part of the battery. Luminous means that riding the controller battery undervoltage protection action.
5. If your battery has not been used for a long time (2-3 months), please charge the battery before using it. Make sure your battery is not broken.
6.Please use the charger in a dry place in time.
7.When you do not use the charger, do not always connect the power supply.
8.Please confirm your battery, It is used to charge the lithium battery. Do not use on the LiFepo4 battery, otherwise the charger will be hot
Application: 16S Lithium Batteries
Output: 67.2V 1.5A
Charger Type: CC and CV
Battery Charger Case Material: ABS + PC
Size: 134 x 56 x 46mm
Operating Temperature: -20 to 60 Degree
Operating Humidity: 20 to 90%RH
Storage Temperature: -40 fo +80Degree
Protection
Over current protection
Over voltage protection
Short Circuit Protection
Reverse Connection Protection
Usage Introdction
Dual color LED indicator:(Charging:Red; Fully charged or no load:Green)
High efficiency and low power consumption
Package
1pc 67.2V 1.5A Lithum Battery Charger
1pc cable
Tips: The charger connector size is 12MM
Use and maintenance of the charger :
1. When charging, first connector to the battery, then connect to AC; after full, cut off AC, then pull the battery plug.
If you pull the battery plug first while charging, especially when the charging current is large (red light), it is very easy to damage the charger.
2. When the LED light turns green, please continue charging for 2-3 hours.
3. Please do not run out of battery power, then charger. Otherwise the battery cannot be protected or even damaged.
4. long-term shallow discharge battery, about 3 months, for a deep discharge, is the so-called re-lighting, which is conducive
to the activation of long-term immobile material in the deep part of the battery. Luminous means that riding the controller battery undervoltage protection action.
5. If your battery has not been used for a long time (2-3 months), please charge the battery before using it. Make sure your battery is not broken.
6.Please use the charger in a dry place in time.
7.When you do not use the charger, do not always connect the power supply.
8.Please confirm your battery, It is used to charge the lithium battery. Do not use on the LiFepo4 battery, otherwise the charger will be hot
