Note: Before leaving the factory, the gimbal has been adjusted to fit the camera. Based on the setup procedures, you can achieve a fabulous flight experience. Please do not adjust the gimbal or change its mechanical structure. Moreover, do not add any external component to the camera. It is highly suggested to apply to the original battery to avoid malfunctions of internal wirings or performance degradations.

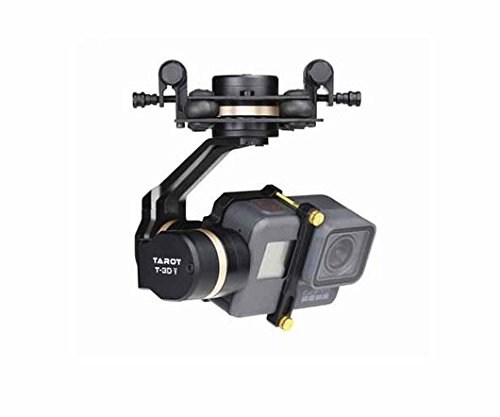

TAROT GoPro 3DⅣ Metal Brushless Gimbal is specially designed for GoPro 5 on the basis of Tarot T-3D gimbal.It integrated all the high end technology of Tarot gimbal, it adopts CNC integral structure design,which brings the light weight gimbal and stable performance. With unique internal wiring design, built-in IMU gimbal control module, specialized servo drive module, this gimbal is able to support Pan Follow (PF) mode and First Person View (FPV) mode.This gimbal can work independently.

Specifications:
Supported Camera：GOPRO Hero 5
Input Power: 3S-6S Li (11V-26V)
Working Current: 30mA（@25V)/50mA（@12V）
Stall Current: 350mA（@25V)/700mA（@12V）
Attitude Control Accuracy： +-0.02°
Max Controllable Rotation Speed：
TILT: +-200 deg/s
ROLL: +-200 deg/s
PAN: +-200 deg/s
Controllable Rotation Range:
TILT: -135°to +45°
ROLL: +-48°
PAN: +-330°
Support S-Bus/PPM/DSM receiver
Working Environment: -20℃~+50℃
Weight: 153g
Dimensions : 60mm*75mm*100mm
Assistant Software Supporting Platform: Windows XP； Windows VISTA; Windows 7；Windows 8（32 or 64 bit)

Package Included:
Tarot GoPro metal Gimbal x 1
Gimbal Main Controller Module x 1
5V OUT and Receiver wires x 1
Gimbal Main Controller & Gimbal Connection Cable x 1
Connection Cable to Flight Controller x 1
USB Module x 1
Manual x 1
