Description

Main Features:
Support DVB-S/S2/S2X , DVB-T2/T, DVB-C2/C (ITU-T J.83 Annex A/B/C), ISDB-T
Fast scanning functionality for all media
Support VCM, CCM, QPSK, 8PSK, 16APSK, 32APSK;
Up to 173M/bps(TS Data Rate)
Quad flexible TS interfaces

ISDB-T
COFDM demodulator and FEC decoding
Support 3 layers decoding
TMCC decoding
Support differential demodulation
AC1 and AC2 decoding

DVB-T2 and T2-Lite
Receiving channel: VHF band, UHF band
Bandwidth: 1.7, 5, 6, 7, 8MHz
FEC: QPSK, 16QAM, 64QAM,256QAM
FEC: QPSK, 16QAM, 64QAM,256QAM
FFT mode: 1K, 2K, 4K, 8K, 16K, 32K
Code rate: 1/2, 2/3, 3/4, 5/6, 7/8

DVB-C2
COFDM demodulator(16_QAM to 4096_QAM)
FEC(LDPC/BCH) decoder
Bandwidth: 6MHz, 7MHz, 8MHz

DVB-C and ITU-T J.83 Annex B
QAM demodulator
FEC decoder
1 to 7.2MSymbol/s

DVB-S/S2/S2X
symbol rates: 1-45Msps
FEC:
DVB-S/S2
QPSK: 1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10
8PSK: 3/5, 2/3, 3/4, 5/6, 8/9, 9/10
16APSK: 2/3, 3/4, 4/5, 5/6, 8/9, 9/10
32APSK: 3/4, 4/5, 5/6, 8/9, 9/10
DVB-S2X
QPSK: 13/45, 9/20, 11/20
2_4_2_APSK: 100/180, 104/180
8PSK: 23/36, 25/36, 13/188_8_APSK: 90/180, 96/180, 100/180, 18/30, 20/30
16APSK: 26/45, 3/5, 28/45, 23/36, 25/36, 13/18, 140/180, 154/180
4_12_16rb_APSK: 2/3
4_8_4_16_APSK: 128/180, 132/180, 140/180

Power consumption
Input/ Power: 12V/6~18W
Temperature: 0°~ 60°

System Requirements:
Windows XP / Vista/ 7/8/10, Linux
Available PCI Express x1, x4, x8 or x16 slot
Digital TV signal (ISDB-T/DVB-T2/C2/S2X/S2/T/C/S)

Package Contents :
1 x TBS6504
1 x DC line
2 x F-IEC adapter

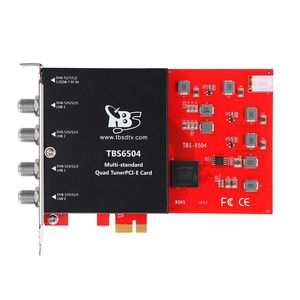

TBS6504 DVB-S2X S2 S T2 T C2 C Digital TV Quad Tuner Card for Live TV

Price is below average

Get price

Current Price

$239.99

Average

$241.24

Min Price

$210

Max Price

$299.99

Price dynamics

Description

ISDB-T
COFDM demodulator and FEC decoding
Support 3 layers decoding
TMCC decoding
Support differential demodulation
AC1 and AC2 decoding

DVB-C2
COFDM demodulator(16_QAM to 4096_QAM)
FEC(LDPC/BCH) decoder
Bandwidth: 6MHz, 7MHz, 8MHz

DVB-C and ITU-T J.83 Annex B
QAM demodulator
FEC decoder
1 to 7.2MSymbol/s

Power consumption
Input/ Power: 12V/6~18W
Temperature: 0°~ 60°

System Requirements:
Windows XP / Vista/ 7/8/10, Linux
Available PCI Express x1, x4, x8 or x16 slot
Digital TV signal (ISDB-T/DVB-T2/C2/S2X/S2/T/C/S)

Package Contents :
1 x TBS6504
1 x DC line
2 x F-IEC adapter

According to the data, price will be lower in next two weeks, so not waste your money and track better price!

Product review & video

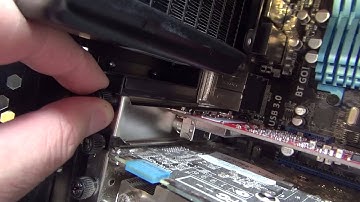

hello again the day I thought we'd look at the TV s6 205 dvb-t 2 quad TV tuner card recent purchase it's obviously for UK Freeview HD or dvb-t 2 if you have that in your region it's a PCIe card but look inside the box and see what's in there not a great deal to it it's quite small ok this is not a cheap card it cost me I think 170 pounds in the UK but my aim here is to have maximum capability for recording multiple channels on my TV server at home ok it comes with a few bits here what we've got here is we've got a low profile case adapter so you could change the adapter size if you've got a low profile case and we've also got an f-type male to coax RF female adapter you'll actually need to buy another one of these if you want to use the RF out on the card but because it only comes with one there's the low profile adapter that I won't be using and also we have in a bag what looks like a
