DA8950TH Philips high-efficiency Class D digital audio amplifier. IC selection HSOP24 power package with low power consumption and quiescent current. Because the interior is MOS tube output, so the sound has a good performance. Deep, powerful bass and good flexibility.

Feature:
Using original TDA8950TH.
signal main circuit electrolytic capacitors used in Taiwan brand, the main filter capacitor capacitance using 2 × 3300UF, using domestic flat bridge rectifier 10A and above, to ensure strong support for a steady stream of power.
resistance selection rings metal resistance, the main circuit employs a precision of ± 1% metal film resistors rings, ensure the machine a good signal to noise Ratio.
PCB using double-sided sheet 1.6mm thick, 2.0 oz copper thickness, HASL whole process to ensure that the size of the current through the good performance.

parameter:
Work: Class D
Quiescent Current: 50mA
Efficiency: 90%
Rated output power: 2 * 120W
Frequency response: 20Hz to 20KHz
Operating voltage: AC18V to AC26V
Maximum output current: 8A
PCB Size: 95 * 75MM

Package:

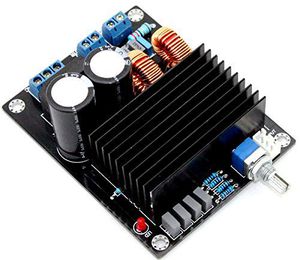

1pc TDA8950 120W+120W Class D Amplifier Board
