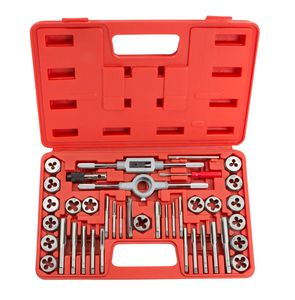

With a full range of coarse and fine sizes up to 12 mm, the tapered plug taps and dies of the TEKTON 39-piece tap and die set (metric) start easily to cut new material or chase lightly damaged threads.
Tapered Plug Taps and Dies
These tapered plug taps and dies are the most commonly used style and are perfect for most hand threading applications. They are known for their ability to start easily, either cutting new material or chasing lightly damaged threads.
Tapered coarse and fine taps and dies start easily and prevent overthreading (view larger).
Cut New Material or Chase Lightly Damaged Threads
With proper technique and the right lubricant, these taps and dies will cut mild carbon and alloy steel, cast iron, aluminum, brass, and bronze.
Tap and Die Sizes:
- Coarse Thread: 3 x 0.5, 3 x 0.6, 4 x 0.7, 4 x 0.75, 5 x 0.8, 5 x 0.9, 6 x 1.0, 7 x 1.0, 8 x 1.25, 10 x 1.5, 12 x 1.75
- Fine Thread (NF): 6 x 0.75, 7 x 0.75, 8 x 1.0, 10 x 1.25, 12 x 1.5
- Pipe Thread (NPT): 1/8 NPT 27
