Description

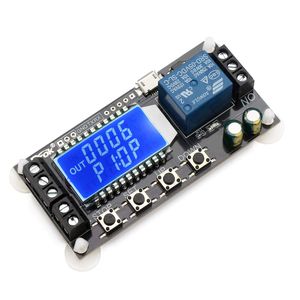

DROK Timer Relay Board
Parameters:
Working voltage: DC 6V~30V, support micro USB 5.0 V power supply
Working current: 50mA
Static current: 15mA
Max. output load: able to control device within DC 30V 5A or AC 220V 5A.
Trigger signal source: High level trigger (3.0V~24.0V), low level trigger (0.0V ~0.2V), switching value control (Potential free contact)
Service life: more than 100,000 times
Working temperature: -40-85°C
Additional Functions:
a)Automatically sleep function/Low power function: In the running interface, long press STOP to turn on or turn off automatically sleep function. (selects ON for L-P to turn on the sleep function, and OFF to turn off the sleep function);
b)Relay function selection: In the operation interface, short press STOP to enable or disable the relay function. 'ON' means that when meets the conduction condition, the relay will be turned on, 'OFF' means that when meets the conduction condition, the relay won't be turned on. In the 'OFF' state, the system flashes 'OUT'.
c)Parameters viewing: In the operation interface, short press SET to display the current parameter setting in the system, without affecting the system normal operation.
d)Display parameter switching: In the P-5 P-6 mode, press DOWN to switch display parameter(runtime/cycle times).
Package Included:
1* Time Delay Relay
Parameters:
Working voltage: DC 6V~30V, support micro USB 5.0 V power supply
Working current: 50mA
Static current: 15mA
Max. output load: able to control device within DC 30V 5A or AC 220V 5A.
Trigger signal source: High level trigger (3.0V~24.0V), low level trigger (0.0V ~0.2V), switching value control (Potential free contact)
Service life: more than 100,000 times
Working temperature: -40-85°C
Additional Functions:
a)Automatically sleep function/Low power function: In the running interface, long press STOP to turn on or turn off automatically sleep function. (selects ON for L-P to turn on the sleep function, and OFF to turn off the sleep function);
b)Relay function selection: In the operation interface, short press STOP to enable or disable the relay function. 'ON' means that when meets the conduction condition, the relay will be turned on, 'OFF' means that when meets the conduction condition, the relay won't be turned on. In the 'OFF' state, the system flashes 'OUT'.
c)Parameters viewing: In the operation interface, short press SET to display the current parameter setting in the system, without affecting the system normal operation.
d)Display parameter switching: In the P-5 P-6 mode, press DOWN to switch display parameter(runtime/cycle times).
Package Included:
1* Time Delay Relay
Time Delay Relay, DROK Timer Delay Controller Module 5V 12V 24V Delay-off Cycle Timer 0.01s-9999mins Adjustable Trigger Delay Switch Control Relay Board with LCD Display Support Micro USB 5V Input
Current Price
$13.99
Average
$12.88
Min Price
$11.49
Max Price
$13.99
Price dynamics
8%
Description
DROK Timer Relay Board
Parameters:
Working voltage: DC 6V~30V, support micro USB 5.0 V power supply
Working current: 50mA
Static current: 15mA
Max. output load: able to control device within DC 30V 5A or AC 220V 5A.
Trigger signal source: High level trigger (3.0V~24.0V), low level trigger (0.0V ~0.2V), switching value control (Potential free contact)
Service life: more than 100,000 times
Working temperature: -40-85°C
Additional Functions:
a)Automatically sleep function/Low power function: In the running interface, long press STOP to turn on or turn off automatically sleep function. (selects ON for L-P to turn on the sleep function, and OFF to turn off the sleep function);
b)Relay function selection: In the operation interface, short press STOP to enable or disable the relay function. 'ON' means that when meets the conduction condition, the relay will be turned on, 'OFF' means that when meets the conduction condition, the relay won't be turned on. In the 'OFF' state, the system flashes 'OUT'.
c)Parameters viewing: In the operation interface, short press SET to display the current parameter setting in the system, without affecting the system normal operation.
d)Display parameter switching: In the P-5 P-6 mode, press DOWN to switch display parameter(runtime/cycle times).
Package Included:
1* Time Delay Relay
Parameters:
Working voltage: DC 6V~30V, support micro USB 5.0 V power supply
Working current: 50mA
Static current: 15mA
Max. output load: able to control device within DC 30V 5A or AC 220V 5A.
Trigger signal source: High level trigger (3.0V~24.0V), low level trigger (0.0V ~0.2V), switching value control (Potential free contact)
Service life: more than 100,000 times
Working temperature: -40-85°C
Additional Functions:
a)Automatically sleep function/Low power function: In the running interface, long press STOP to turn on or turn off automatically sleep function. (selects ON for L-P to turn on the sleep function, and OFF to turn off the sleep function);
b)Relay function selection: In the operation interface, short press STOP to enable or disable the relay function. 'ON' means that when meets the conduction condition, the relay will be turned on, 'OFF' means that when meets the conduction condition, the relay won't be turned on. In the 'OFF' state, the system flashes 'OUT'.
c)Parameters viewing: In the operation interface, short press SET to display the current parameter setting in the system, without affecting the system normal operation.
d)Display parameter switching: In the P-5 P-6 mode, press DOWN to switch display parameter(runtime/cycle times).
Package Included:
1* Time Delay Relay
Price will be lower
in next 2 weeks
in next 2 weeks
According to the data, price will be lower in next two weeks, so not waste your money and track better price!
