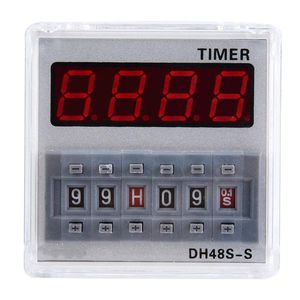

Timer Switch, Programmable Control Digital Timer Switch with LCD Display for Remote Control
1. High quality ABS outer case, resistant to impact and not easy to deform.
2. Clear LED display for accurate timing control.
3. Time range can be set freely by the dial switch.
4. Equipped with a transparent cover to protect the control panel.
5. Widely applied to remote control, communication, automatic control, mechatronics and so on.
Specification:
Model: DH48S-S
Working Voltage: 12V AC/DC, 24V AC/DC, 380VAC (optional)
Contact Capacity: AC220V 5A (resistive); DC30V 5A (resistive)
Power Consumption: ≤5W
Delay Range: 0.1S-99H
Delay Control Accuracy: ≤0.3%±0.05s
Mechanical Life: ≥10,000,000
Electrical Life: ≥100,000
Ambient Temperature: -10℃~50℃
Package Weight: Approx. 112g/113g/179g(optional)
Package list:
1 * Time Relay
