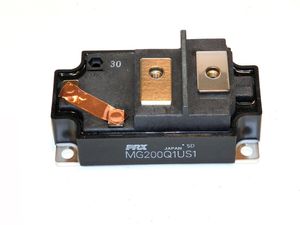

TOSHIBA MG200Q1US1 POWER MODULE 200 A, 1200 V, N-CHANNEL IGBT

welcome to GTV today I will be showing you how to test an IGBT with a digital multimeter before starting I would like to point out that most manufacturers test IGBT devices before shipping out and it is generally not recommended to retest these devices as it could potentially damage the device the testing that I will be showing you is only needed if it is necessary to assess the electrical characteristics of an IGBT when testing make sure that you take static safe handling procedures as to not to shock the unit you must also never apply the connector to emitter voltages greater than the IGBTs BCE s rating and never applied gate to emitter voltages greater than the IGBTs v GES rating also never apply a voltage greater than 20 volts to the collector emitter with the gate terminal open for this test I will require a digital multimeter also known as a DMM which has a diode check mode and a
