product details:

Bluetooth 5.0 product details:
1. Using original TPA3116
2. Bluetooth adopts QCC3003 Bluetooth module
3. DAC decoder chip uses PCM5102
4. Power supply filter capacitor is 3300UF/50V
5. The main circuit of electrolytic capacitor signal adopts Taiwan brand, and the main filter capacitor adopts Japanese electrolytic capacitor to ensure strong and continuous power support.
6. The resistor uses high-precision chip resistor to ensure a good signal-to-noise ratio of the whole machine.
7.PCB adopts 1.6mm thick double-sided sheet, 2.0 oz copper thickness, and spray tin full process to ensure good passing performance of large and small currents.
8. With fully enclosed dustproof potentiometer, the performance is more stable and more durable than ordinary potentiometer!
9. Use high-impedance inductors for fully shielded audio to ensure sound is crisp and powerful.
10. Adopt the latest Bluetooth 5.0+DAC version
11. The way to connect to Bluetooth is the same as that of a normal device! Search device (YjHiFi)-point (YjHiFi) connection device - play music

 Basic parameters:
   Working method: Class D
   Quiescent current: 60mA
   Work efficiency: 90%
   Rated output power: 100W+2*50W
   Frequency response: 20Hz to 20KHz
   Working voltage: DC18V to DC24V (internal + external - 5.5*2.1)
   Maximum output current: 3A
   PCB size: 100*100MM
   Net weight: 0.15KG

   Potentiometer distance: 19MM 19MM 19MM 19MM 25MM

   Potentiometer function: from left to right:
1. Subwoofer volume 2. Subwoofer FM 3. Left and right channel volume 4. Left and right channel treble 5. Total volume

Package:

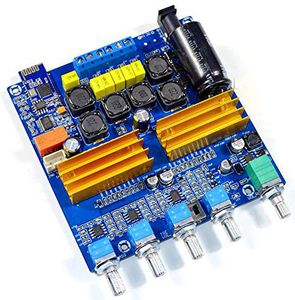

1pc TPA3116 2.1 Bluetooth 5.0 Class D 100W+2*50W Digital HIFI Power Amplifier Board
